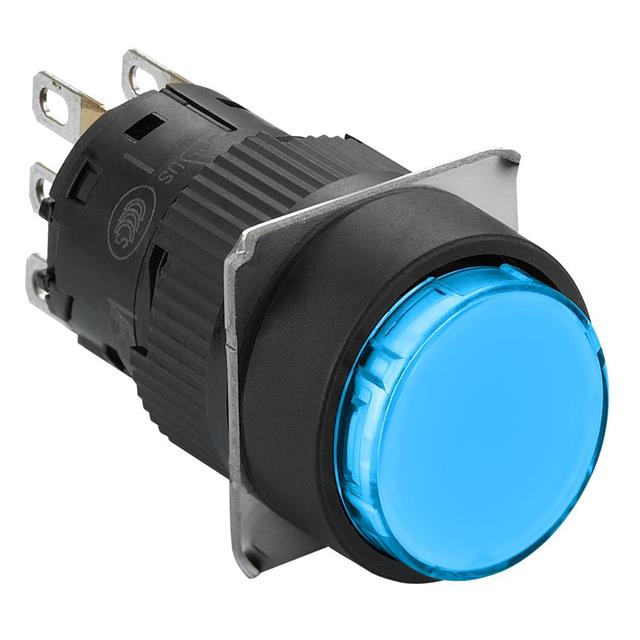

Specification	XB6EAF6J1P

Actuator Type	Round, Flush, Button
Circuit	SPDT
Color	Blue
Color - Actuator/Cap	Blue
Electrical Life (Cycles)	50000
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	250000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect
Type	Standard, Illuminated
