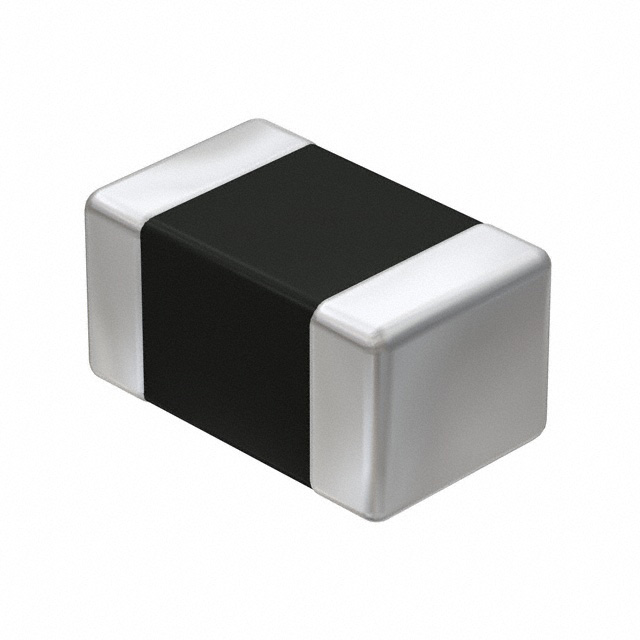

BK1608HS121-TV
ObsoleteTaiyo Yuden
FERRITE BEAD 120 OHM 0603 1LN
BK1608HS121-TV
ObsoleteTaiyo Yuden
FERRITE BEAD 120 OHM 0603 1LN
Description
General part information
BK1608HS121-TV
120 Ohms @ 100 MHz 1 Ferrite Bead 0603 (1608 Metric) 500mA 180mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | BK1608HS121-TV |
|---|---|
| Current Rating (Max) | 500 mA |
| DC Resistance (DCR) (Max) | 180 mOhm |
| Height (Max) | 0.037 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.032 in, 0.031 in |
