SC8860
ActiveFairview Microwave

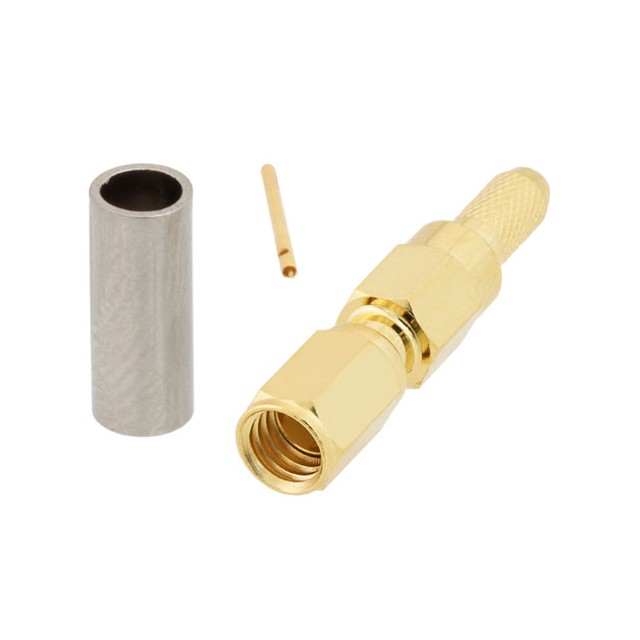

SSMC PLUG (MALE) CONNECTOR FOR R
SC8860
ActiveFairview Microwave
SSMC PLUG (MALE) CONNECTOR FOR R
Description
General part information
SC8860
SSMC PLUG (MALE) CONNECTOR FOR R
Technical Specifications
Parameters and characteristics for this part
| Specification | SC8860 |
|---|---|
| Cable Group | 316, LMR-100, 188, RG-174 |
| Center Contact Material | Beryllium Copper |
| Connector Style | SSMC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
