2176627-6
ActiveTE Connectivity AMP Connectors
PWR RESISTOR 1475W 5% 33R
2176627-6
ActiveTE Connectivity AMP Connectors
PWR RESISTOR 1475W 5% 33R
Description
General part information
2176627-6

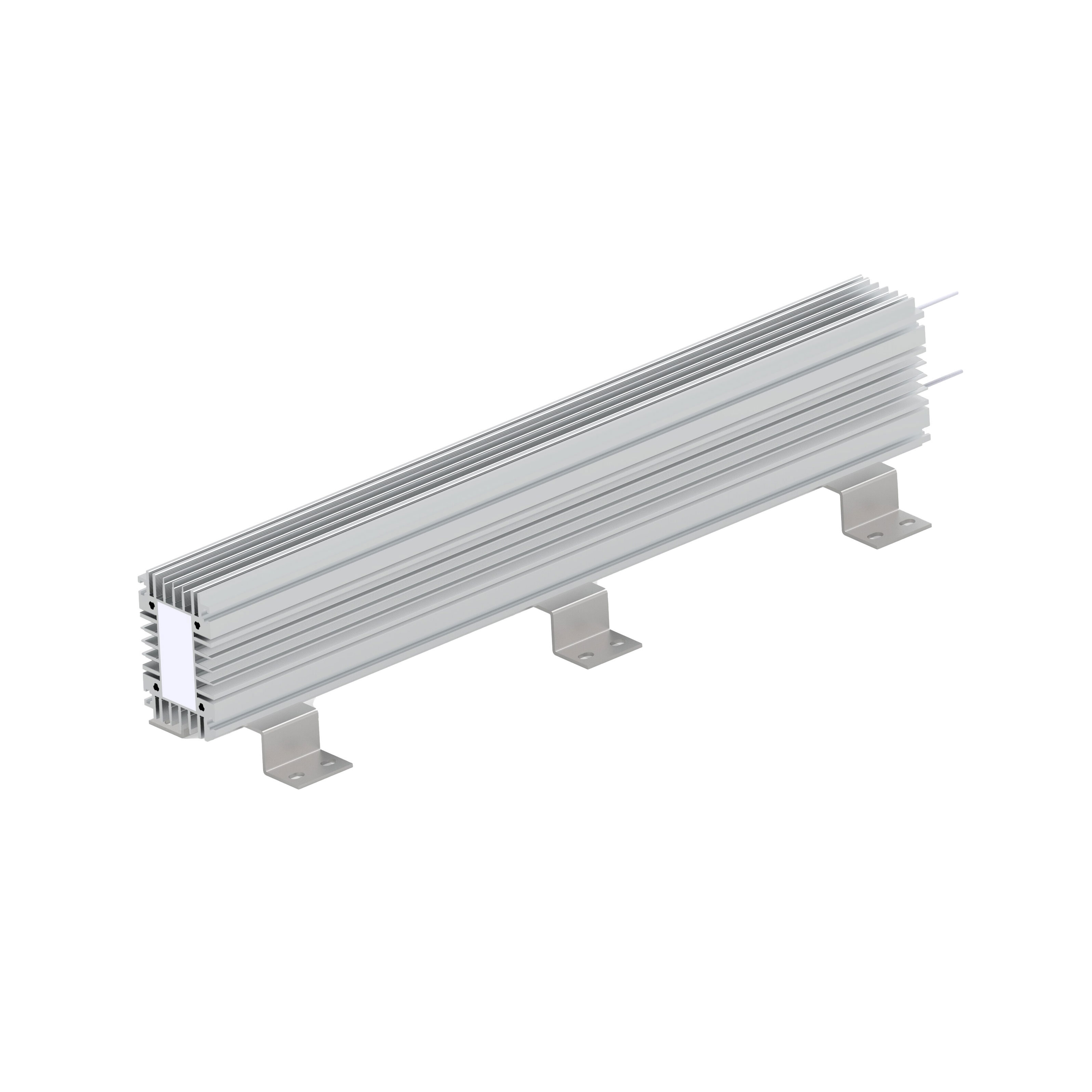

33 Ohms ±5% 1475W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | 2176627-6 |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) | 4.587 in |
| Housing Type | Aluminum |
| Lead Style | Wire Leads |
| Mounting Feature | Brackets |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Rectangular Case, Radial |
| Power (Watts) | 1475 W |
| Resistance | 33 Ohms |
| Size / Dimension Length | 24.606 in |
| Size / Dimension Width | 2.362 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
