Description
General part information

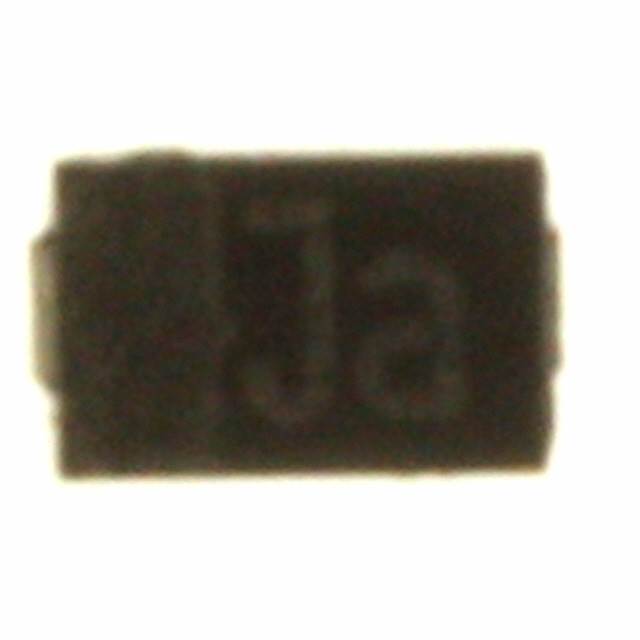

F310J106MPA
10 µF Molded Tantalum Polymer Capacitor 6.3 V 0805 (2012 Metric) 200mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | F310J106MPA |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 200 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.047 in |
| Manufacturer Size Code | P |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
