Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.24 | |
General part information
LED Lighting COBs Engines Modules LED Module MHB-B Horticulture White, Neutral Starboard
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | MHBBWT-0000-000C0BE240E-SB01 | MHBBWT Series |
|---|---|---|
| CCT (K) | 4000 K | 2700 - 6500 K |
| Color | Neutral, White | Neutral, White, Cool, Warm |
| Configuration | Starboard | Starboard |
| CRI (Color Rendering Index) | 70 | 70 - 80 |
| Current - Max [Max] | 700 mA | 700 mA |
| Current - Test | 480 mA | 480 mA |
| Lens Type | Flat | Flat |
| Lumens/Watt @ Current - Test | 146 lm/W | 117 - 146 lm/W |
| Luminous Flux @ Current/Temperature | 613 lm | 493 - 613 lm |
| Size / Dimension [diameter] | 19.89 mm | 19.89 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | LED Module | LED Module |
| Viewing Angle | 115 ° | 115 ° |
| Voltage - Forward (Vf) (Typ) | 8.75 V | 8.75 V |

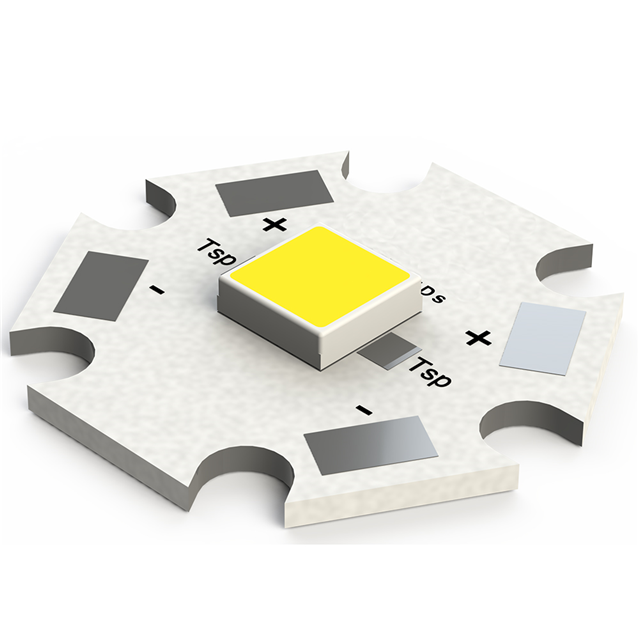

LED MODULE MHB-B 4000K STARBOARD
| Part | Lens Type | Current - Test | Color | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) | Size / Dimension [diameter] | Configuration | Current - Max [Max] | CCT (K) | Type | Viewing Angle | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
New Energy MHBBWT-0000-000C0BE240E-SB01 | Flat | 480 mA | Neutral, White | 8.75 V | 70 | 19.89 mm | Starboard | 700 mA | 4000 K | LED Module | 115 ° | 613 lm | 146 lm/W | 85 °C |
New Energy MHBBWT-0000-000C0BE265E-SB01 | Flat | 480 mA | Cool, White | 8.75 V | 70 | 19.89 mm | Starboard | 700 mA | 6500 K | LED Module | 115 ° | 613 lm | 146 lm/W | 85 °C |
New Energy MHBBWT-0000-000C0HC427G-SB01 | Flat | 480 mA | Warm, White | 8.75 V | 80 | 19.89 mm | Starboard | 700 mA | 2700 K | LED Module | 115 ° | 493 lm | 117 lm/W | 85 °C |
