Description
General part information

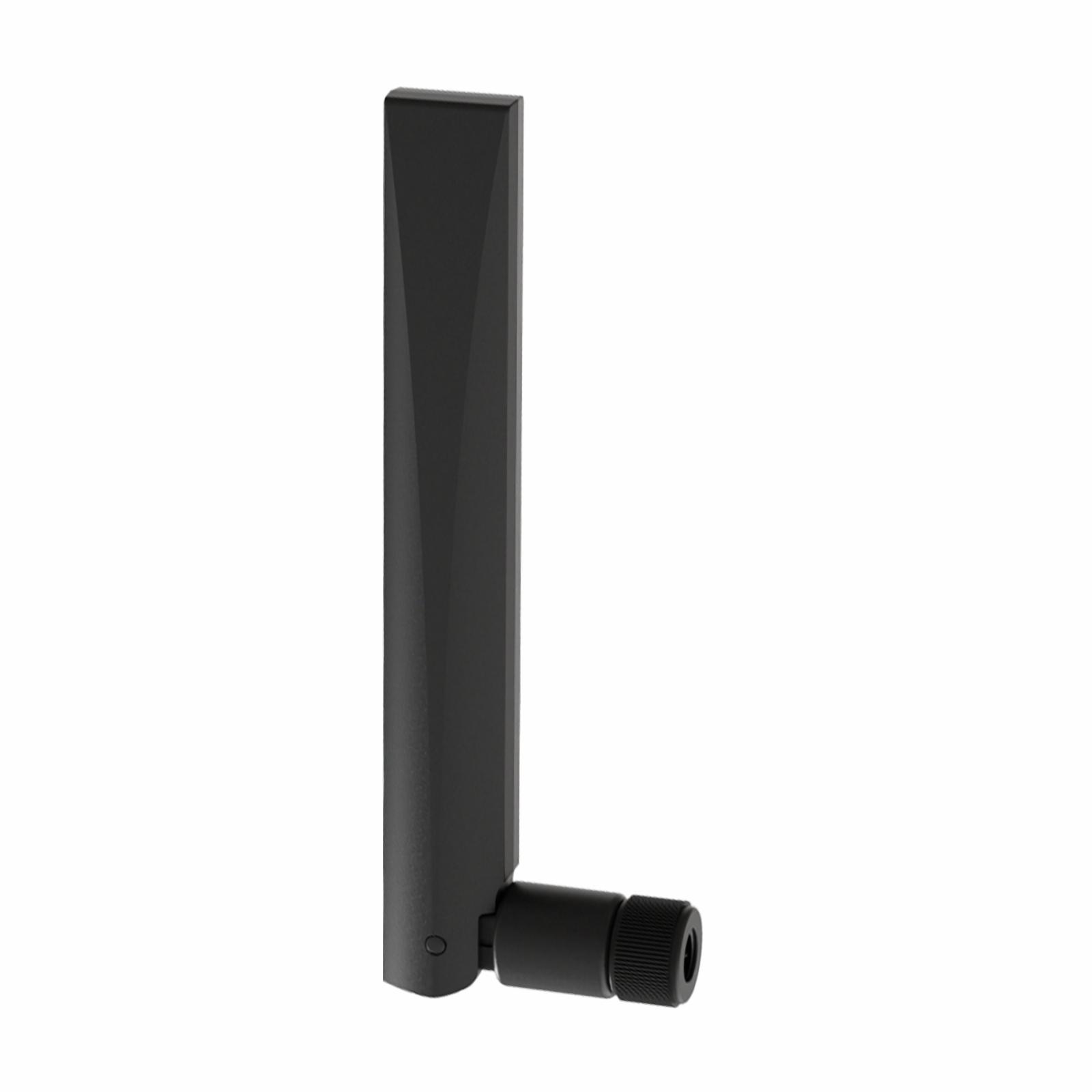

YENT000W1AM
EXTERNAL ANTENNA
Technical Specifications
Parameters and characteristics for this part
| Specification | YENT000W1AM |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LPWA, ISM |
| Frequency (Center/Band) | 440 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 470 MHz |
| Frequency Range (Min) | 410 MHz |
| Gain | 1.3 dBi |
| Height (Max) | 5.315 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | SMA Male |
