CA-RSPNFA002
ActivePasternack
CACA195 RP-SMA PLUG/NF 2FT
CA-RSPNFA002
ActivePasternack
CACA195 RP-SMA PLUG/NF 2FT
Description
General part information
CA-RSPNFA002

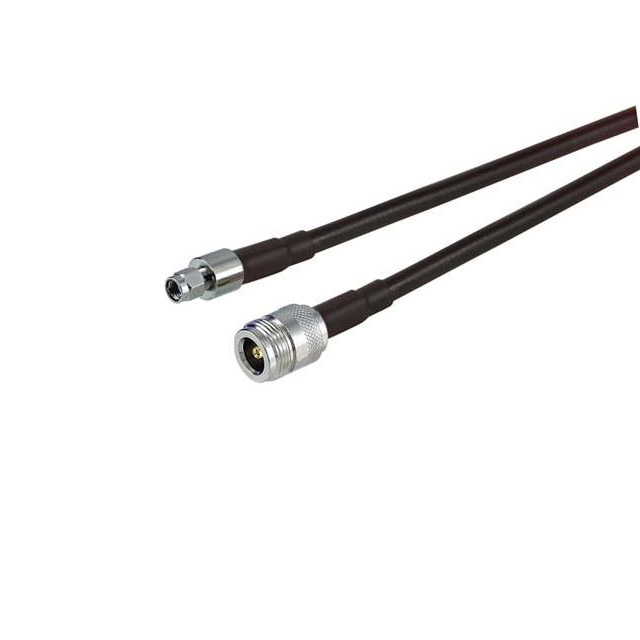

Cable Assembly Coaxial RP-SMA to N-Type LMR 195 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-RSPNFA002 |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 195 |
| Color | Black |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
