HG4958-17DP-3NF
ObsoletePasternack
ANTPANEL 4.9-5.8GHZ 17DBI
HG4958-17DP-3NF
ObsoletePasternack
ANTPANEL 4.9-5.8GHZ 17DBI
Description
General part information
HG4958-17DP-3NF

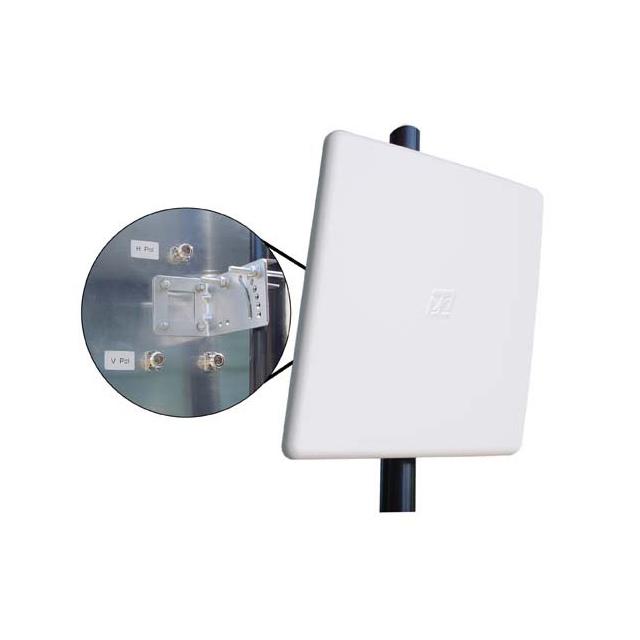

5.375GHz Wi-Fi, WiMax™, WLAN Flat Panel RF Antenna 4.9GHz ~ 5.85GHz 17dBi N Type Female (3) Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG4958-17DP-3NF |
|---|---|
| Antenna Type | Flat Panel |
| Applications | WiMax™, WLAN, Wi-Fi |
| Frequency (Center/Band) | 5.375 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 4.9 GHz |
| Gain | 17 dBi |
| Height (Max) | 0.98 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | WiFi |
| Termination | N Type Female (3) |
| VSWR | 2 |
