1453960
ActivePhoenix Contact
CONN RCPT FMALE 5P SCREW
1453960
ActivePhoenix Contact
CONN RCPT FMALE 5P SCREW
Description
General part information
1453960

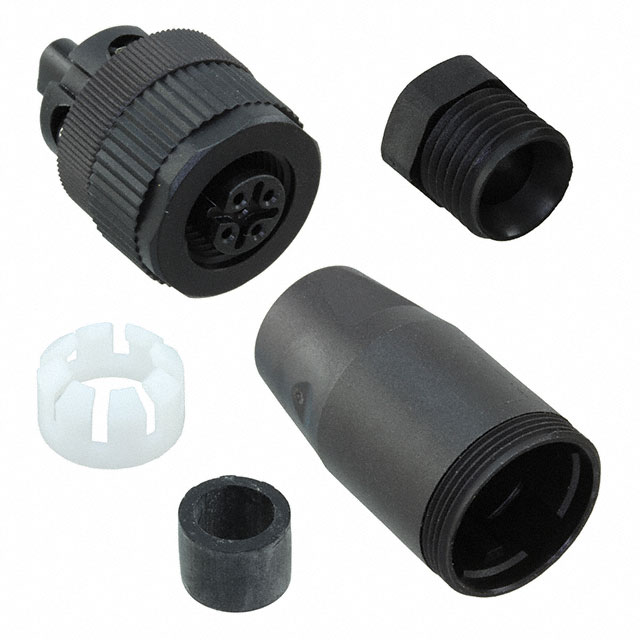

5 Position Circular Connector Receptacle, Female Sockets Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 1453960 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA) |
| Cable Opening (Max) | 0.236 in |
| Cable Opening (Min) | 0.157 in |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Copper, Alloy |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Orientation | B |
| Primary Material | Plastic |
| Shell Material | Plastic |
| Shell Size - Insert | M12-5 |
| Termination | Screw |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 60 VDC |
