CG153U050W4C
ActiveCornell Dubilier Knowles

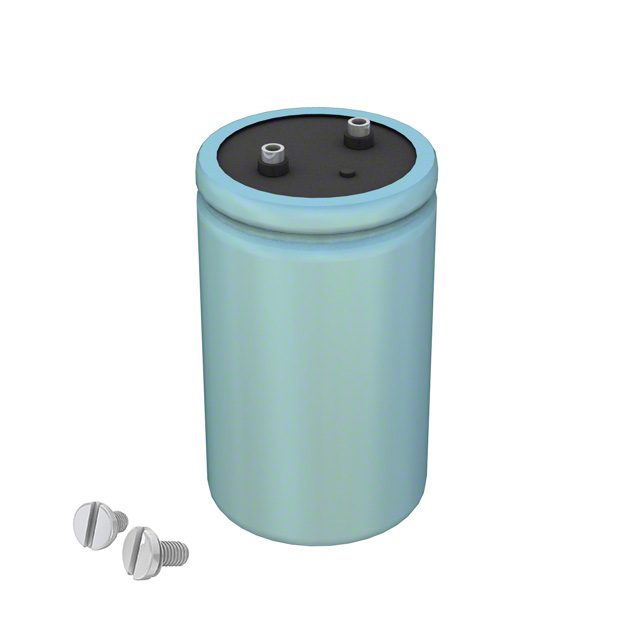

CAP ALUM 15000UF 50V SCREW CHAS
CG153U050W4C
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 50V SCREW CHAS
Description
General part information
CG153U050W4C
15000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 9mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CG153U050W4C |
|---|---|
| Applications | General Purpose |
| Capacitance | 15000 µF |
| ESR (Equivalent Series Resistance) | 9 mOhm |
| Height - Seated (Max) | 4.125 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 16.8 A, 19.32 A |
| Size / Dimension Diameter | 2.5 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 50 V |
