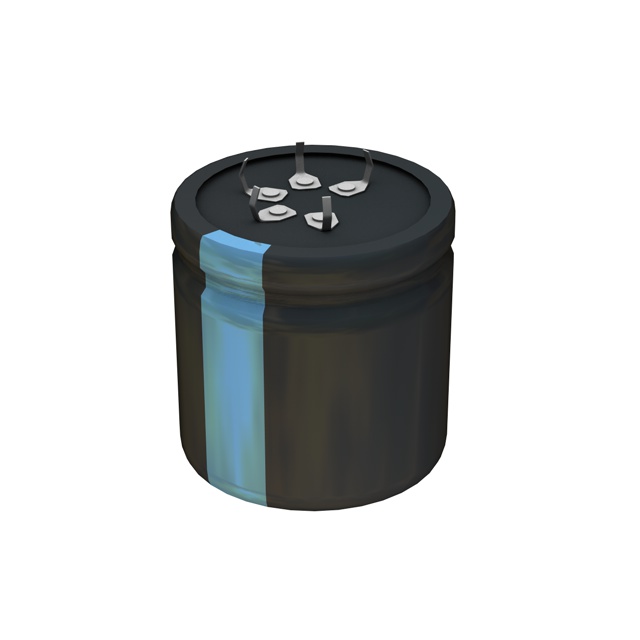

383LX123M080B052VS
ActiveCornell Dubilier Knowles
CAP ALUM 12000UF 20% 80V SNAP TH
383LX123M080B052VS
ActiveCornell Dubilier Knowles
CAP ALUM 12000UF 20% 80V SNAP TH
Description
General part information
383LX123M080B052VS
12000 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 5 Lead 35mOhm 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 383LX123M080B052VS |
|---|---|
| Applications | General Purpose |
| Capacitance | 12000 µF |
| ESR (Equivalent Series Resistance) | 35 mOhm |
| Height - Seated (Max) | 2.047 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Lead |
| Package Name | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 6.93 A, 6.03 A |
| Size / Dimension Diameter | 1.969 in |
| Tolerance | 20 % |
| Voltage - Rated | 80 Vp-p |
