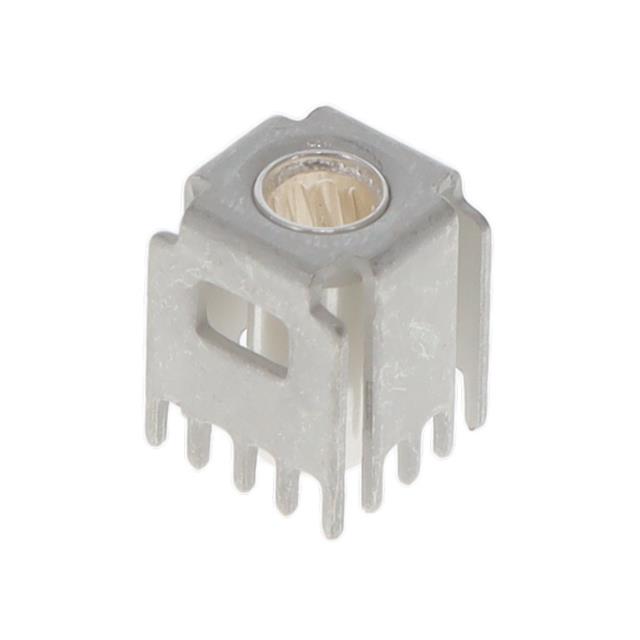

WTB036SV087250R
ActiveAmphenol Industrial Operations
WIRE TO BOARD, 3.6MM, SOCKET, VE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WTB036SV087250R
ActiveAmphenol Industrial Operations
WIRE TO BOARD, 3.6MM, SOCKET, VE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WTB036SV087250R | WTB03 Series |
|---|---|---|
| Color | Black | Black |
| Terminal Type | Female, Receptacle (Socket) | Female, Receptacle (Socket), Pin (Plug), Male |
| Termination | Solder | Solder, Crimp |
| Wire Gauge [Max] | 8 AWG | 8 AWG |
| Wire Gauge [Min] | 6 AWG | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.23 | |
| 10 | $ 5.63 | |||
| 25 | $ 5.32 | |||
| 50 | $ 5.19 | |||
| 100 | $ 4.93 | |||
| Digi-Reel® | 1 | $ 6.23 | ||
| 10 | $ 5.63 | |||
| 25 | $ 5.32 | |||
| 50 | $ 5.19 | |||
| 100 | $ 4.93 | |||
| Tape & Reel (TR) | 400 | $ 3.21 | ||
WTB03 Series
WIRE TO BOARD, 3.6MM, SOCKET, VE
| Part | Color | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Termination |
|---|---|---|---|---|---|
Amphenol Industrial Operations WTB036SV087250R | Black | Female, Receptacle (Socket) | 6 AWG | 8 AWG | Solder |
Amphenol Industrial Operations WTB036SV093250 | Female, Receptacle (Socket) | Solder | |||
Amphenol Industrial Operations WTB036SV093250R | Female, Receptacle (Socket) | 6 AWG | 8 AWG | Solder | |
Amphenol Industrial Operations WTB036PR174000 | Black | Male, Pin (Plug) | 6 AWG | 8 AWG | Crimp |
Amphenol Industrial Operations WTB036SV061250R | Female, Receptacle (Socket) | 6 AWG | 8 AWG | Solder | |
Amphenol Industrial Operations WTB036SV061250 | Female, Receptacle (Socket) | Solder | |||
Amphenol Industrial Operations WTB036SV087250 | Black | Female, Receptacle (Socket) | Solder |
Description
General part information
WTB03 Series
Terminal Female, Receptacle (Socket) Connector Solder 6-8 AWG
