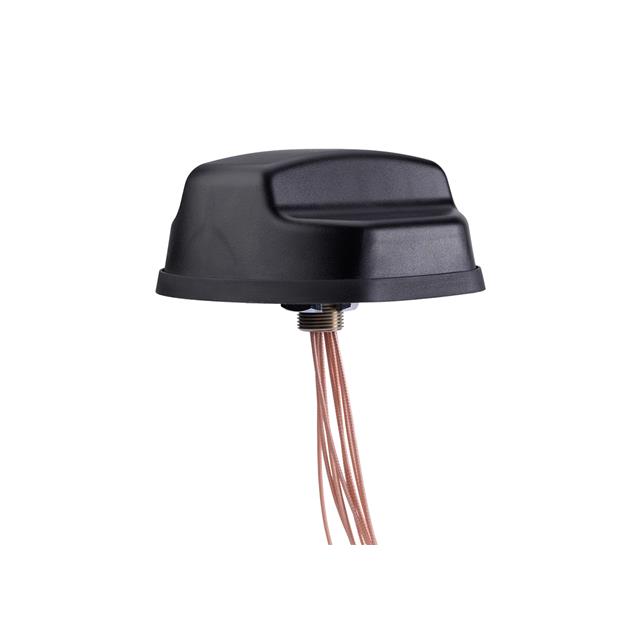

GL9X1AX-SF
ActiveMcGill Microwave Systems
RF ANT 657.5MHZ MOD RP-SMA M PAN
GL9X1AX-SF
ActiveMcGill Microwave Systems
RF ANT 657.5MHZ MOD RP-SMA M PAN
Description
General part information
GL9X1AX-SF
RF ANTENNA 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE Module RP-SMA Male (1), SMA Male (2) Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GL9X1AX-SF |
|---|---|
| Antenna Type | Module |
| Applications | Bluetooth, 2G, Cellular, GPS, LTE, GNSS, 5G, 3G |
| Features | Cable, 5.1816m |
| Frequency (Center/Band) | 3.6GHz, 2.495GHz, 657.5MHz, 1.5865GHz, 2.45GHz, 1.955GHz, 5.4GHz, 5.55GHz, 892MHz, 750MHz |
| Frequency (Center/Band) - 1 | 657.5 MHz |
| Frequency (Center/Band) - 10 | 5.55 GHz |
| Frequency (Center/Band) - 2 | 750 MHz |
| Frequency (Center/Band) - 3 | 892 MHz |
| Frequency (Center/Band) - 4 | 1.5865 GHz |
| Frequency (Center/Band) - 5 | 1.955 GHz |
| Frequency (Center/Band) - 6 | 2.495 GHz |
| Frequency (Center/Band) - 7 | 2.45 GHz |
| Frequency (Center/Band) - 8 | 3.6 GHz |
| Frequency (Center/Band) - 9 | 5.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 10) Maximum | 5.95 GHz |
| Frequency Range (Band 10) Minimum | 5.15 GHz |
| Frequency Range (Band 2) Maximum | 802 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 960 MHz |
| Frequency Range (Band 3) Minimum | 824 MHz |
| Frequency Range (Band 4) Maximum | 1.608 GHz |
| Frequency Range (Band 4) Minimum | 1.565 GHz |
| Frequency Range (Band 5) Maximum | 2.2 GHz |
| Frequency Range (Band 5) Minimum | 1.71 GHz |
| Frequency Range (Band 6) Maximum | 2.69 GHz |
| Frequency Range (Band 6) Minimum | 2.3 GHz |
| Frequency Range (Band 7) Maximum | 2.5 GHz |
| Frequency Range (Band 7) Minimum | 2.4 GHz |
| Frequency Range (Band 8) Maximum | 3.8 GHz |
| Frequency Range (Band 8) Minimum | 3.4 GHz |
| Frequency Range (Band 9) Maximum | 5.9 GHz |
| Frequency Range (Band 9) Minimum | 4.9 GHz |
| Gain | -2 dBic, 4.4 dBi, 2.1 dBi, 4.8 dBi, 3 dBic, -0.2 dBi, 11.4 dBi, 4.7 dBi, 5.8 dBi, 9.1 dBi, 1.1 dBi |
| Height (Max) | 3.012 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 10 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Termination Count (SMA Male) | 2 |
| Termination Type | RP-SMA Male, SMA Male |
| VSWR | 2 |
