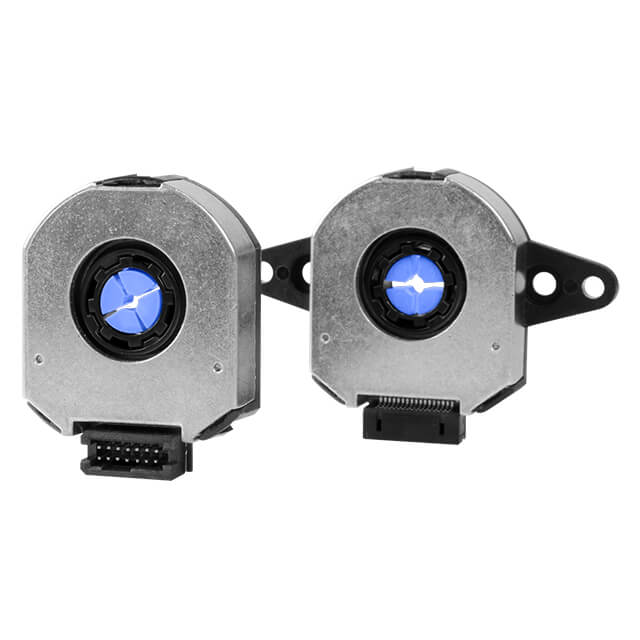

AMT113S-0400-8000-S
ActiveSame Sky (Formerly CUI Devices)
ENC INCR CMOS VOLT RHT ANG TERMI
AMT113S-0400-8000-S
ActiveSame Sky (Formerly CUI Devices)
ENC INCR CMOS VOLT RHT ANG TERMI
Description
General part information
AMT113S-0400-8000-S
ENC INCR CMOS VOLT RHT ANG TERMI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMT113S-0400-8000-S |
|---|---|
| Actuator Diameter | 8 mm |
| Actuator Stroke | 8 mm |
| Actuator Type | Open Center |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Right Angle |
| Output Type | CMOS Voltage |
| Pulses per Revolution | 400 |
| Termination Style | Terminal Pins |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
