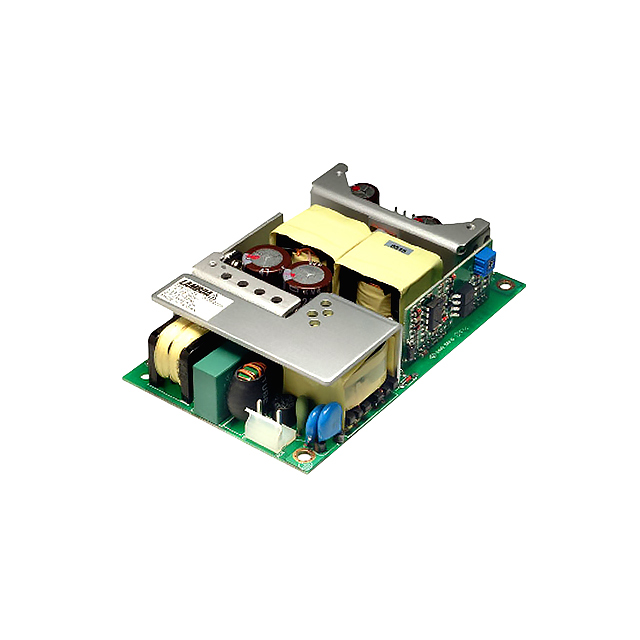

ZPS100-24
ObsoleteTDK Corporation
AC/DC CONVERTER 24V 100W
ZPS100-24
ObsoleteTDK Corporation
AC/DC CONVERTER 24V 100W
Description
General part information
ZPS100-24
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ZPS100-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 4.2 A |
| Efficiency | 85 % |
| Features | Universal Input, DC Input Capable |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 100 W |
| Size / Dimension Height | 1.34 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
