MAL211844472E3
ActiveVishay Dale
CAP ALUM 4700UF 20% 10V TH
MAL211844472E3
ActiveVishay Dale
CAP ALUM 4700UF 20% 10V TH
Description
General part information
MAL211844472E3

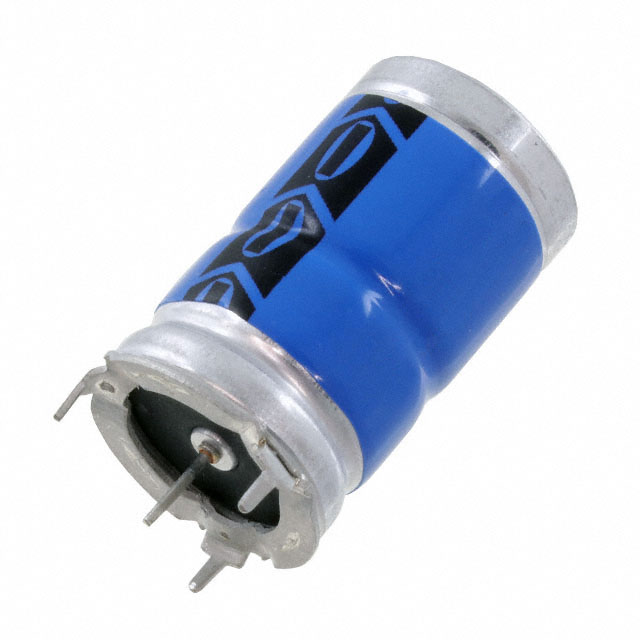

4700 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - Mounting Ring - 4 Lead 155mOhm @ 100Hz 8000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL211844472E3 |
|---|---|
| Applications | Automotive |
| Capacitance | 4700 µF |
| ESR (Equivalent Series Resistance) | 155 mOhm |
| Height - Seated (Max) | 1.299 in |
| Impedance | 150 mOhms |
| Lifetime | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Mounting Ring |
| Polarization | Polar |
| Ripple Current | 1.35 A |
| Size / Dimension Diameter | 0.709 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
