CONN JUNCT 2POS POKE-IN 18-24AWG

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN JUNCT 2POS POKE-IN 18-24AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

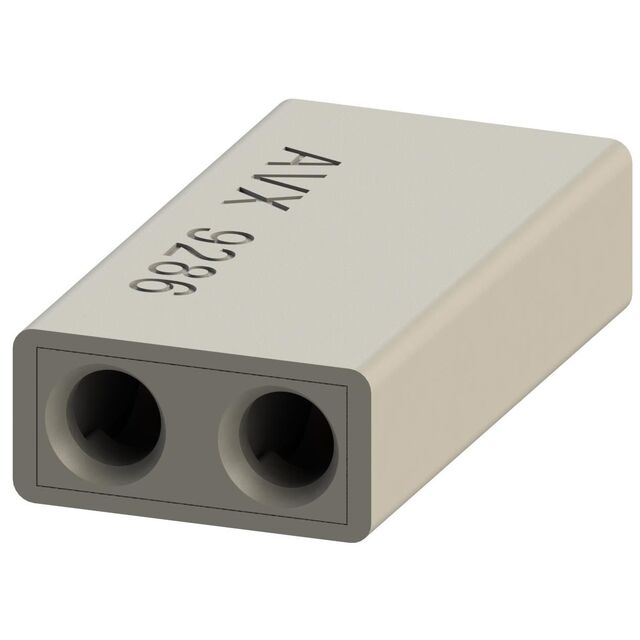

2 Position Rectangular Junction Box Connector Poke-In Tin 18-24 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	009286002203906	009286 Series

Cable Termination	Poke-In	Poke-In
Color	White	White, Yellow, Green, Red, Black, Brown, Blue
Connector Type	Junction Box	Junction Box
Contact Finish	Tin	Tin
Contact Type	Spring	Spring
Features	Feed Through	Feed Through
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	1 - 8
Number of Rows	1	1
Wire Gauge	-	12 - 13.5 AWG
Wire Gauge [Max]	24 AWG	18 - 26 AWG
Wire Gauge [Min]	17.5 AWG	16 - 17.5 AWG
Wire Type	Discrete	Discrete
