RDM-MBF5-A-4614-O-X-001

Active

Raltron Electronics

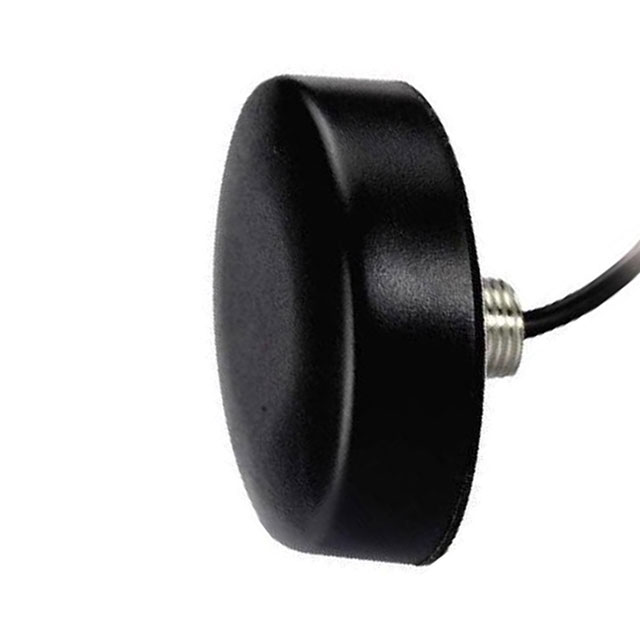

RF ANT 850/900MHZ DOME SMA MALE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RDM-MBF5-A-4614-O-X-001

Active

Raltron Electronics

RF ANT 850/900MHZ DOME SMA MALE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.62
		10	$ 25.48
		50	$ 24.33
		100	$ 21.75
		250	$ 20.75
		500	$ 19.75

Description

General part information

RDM-MBF5 Series

850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz Cellular, GSM, GPS, LNA Puck RF Antenna 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz 0dBi, 2dBi IPEX (2) Screw

Documents

Technical documentation and resources

Specification	RDM-MBF5-A-4614-O-X-001	RDM-MBF5 Series

Antenna Type	-	Dome
Applications	GSM, LNA, Cellular, GPS	GSM, LNA, Cellular, GPS
Frequency (Center/Band)	850 MHz, 1.9 GHz, 900 MHz, 2.1 GHz, 1.575 GHz, 1.8 GHz	1.575 - 915 MHz
Frequency Group	Wide Band	Wide Band
Frequency Range	1.575 GHz	1.575 GHz
Frequency Range [Max]	2.17 GHz, 960 MHz	2.17 - 960 GHz
Frequency Range [Min]	1.71 GHz, 824 MHz	1.71 - 824 GHz
Gain	0 dBi, 2 dBic	0 - 2 dBi
Height (Max)	-	48 mm
Height (Max)	-	1.889 in
Height (Max) [Max] [z]	0.642 in	0.642 in
Height (Max) [Max] [z]	16.3 mm	16.3 mm
Ingress Protection	IP67, IP66	IP67, IP66
Mounting Type	Screw	Screw
Number of Bands	2	2
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Termination	IPEX (2)	IPEX (2), RP-SMA Male (2)
VSWR	1.5	1.5
VSWR	2	2
VSWR	2.5	2.5
VSWR	-	2
VSWR	-	1.5

Part	Frequency Group	Gain	RF Family/Standard	VSWR	VSWR	VSWR	Frequency Range [Max]	Frequency Range	Frequency Range [Min]	Termination	Frequency (Center/Band)	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Applications	Ingress Protection	Number of Bands	Antenna Type	VSWR [Max]	VSWR [Min]	Height (Max) [Max]	Height (Max) [Max]
Raltron Electronics RDM-MBF5-A-4614-O-X-001	Wide Band	0 dBi, 2 dBic	Cellular, Navigation	1.5	2	2.5	2.17 GHz, 960 MHz	1.575 GHz	1.71 GHz, 824 MHz	IPEX (2)	1.575 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 900 MHz	Screw	0.642 in	16.3 mm	Cellular, GPS, GSM, LNA	IP66, IP67	2
Raltron Electronics RDM-MBF5-A-5048-1M-X-001	Wide Band	2 dBic	Cellular, Navigation				2.17 GHz, 960 MHz	1.575 GHz	1.71 GHz, 824 MHz	RP-SMA Male (2)	1.575 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 868 MHz, 900 MHz, 915 MHz	Screw			Cellular, GPS, GSM, LNA	IP66, IP67	2	Dome	2	1.5	48 mm	1.889 in
