Specification	XCKU040-3SFVA784E

Mounting Type	Surface Mount
Number of I/O	468
Number of LABs/CLBs	30300
Number of Logic Elements/Cells	530250
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	0 °C

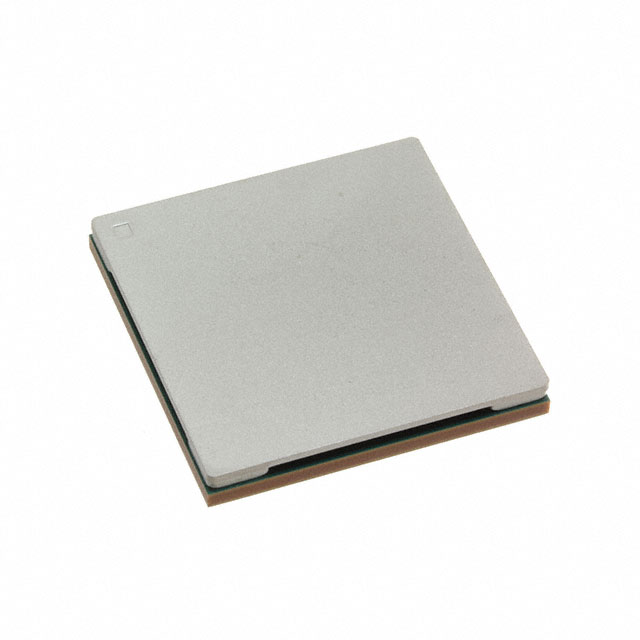

Package / Case	FCCSP, 784-BFBGA
Package Length	23 mm
Package Name	784-FCCSPBGA
Package Width	23 mm
Total RAM Bits	21606000 bits
Voltage - Supply (Maximum)	1.03 V
Voltage - Supply (Minimum)	0.97 V

XCKU040 Series

Part	Total RAM Bits	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of Logic Elements/Cells	Number of LABs/CLBs	Mounting Type	Package / Case	Package Width	Package Name	Package Length	Number of I/O	Operating Temperature (Max)	Operating Temperature (Min)	Interconnect System	P/N Breakdown	Suggested Programming Environment	For Use With/Related Products	Type	Utilized IC / Part	Platform	Contents
AMD / Xilinx XCKU040-2FBVA900E	21606000 bits	0.922 V	0.979 V	530250	30300	Surface Mount	900-BBGA FCBGA	31 mm	900-FCBGA	31 mm	468	100 °C	0 °C
AMD / Xilinx XCKU040-2FFVA1156E	21606000 bits	0.922 V	0.979 V	530250	30300	Surface Mount	1156-BBGA FCBGA	35 mm	1156-FCBGA	35 mm	520	100 °C	0 °C
AMD / Xilinx XCKU040-1FBVA676C	21606000 bits	0.922 V	0.979 V	530250	30300	Surface Mount	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	312	85 °C	0 °C
AMD / Xilinx XCKU040-1FBVA676I	21606000 bits	0.922 V	0.979 V	530250	30300	Surface Mount	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	312	100 °C	-40 °C
AMD / Xilinx EK-U1-KCU105-G-J														FMC Pmod	J = Japan version does not ship with a power supply	Vivado	XCKU040	FPGA	XCKU040	Kintex UltraScale FPGA KCU105 Japan PCIe Card	Board Cable(s) - Power Supply Not Included -
AMD / Xilinx XCKU040-2FFVA1156I	21606000 bits	0.922 V	0.979 V	530250	30300	Surface Mount	1156-BBGA FCBGA	35 mm	1156-FCBGA	35 mm	520	100 °C	-40 °C
AMD / Xilinx XCKU040-3FBVA676E	21606000 bits	0.97 V	1.03 V	530250	30300	Surface Mount	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	312	100 °C	0 °C
AMD / Xilinx XCKU040-1FFVA1156C	21606000 bits	0.922 V	0.979 V	530250	30300	Surface Mount	1156-BBGA FCBGA	35 mm	1156-FCBGA	35 mm	520	85 °C	0 °C
AMD / Xilinx XCKU040-2FBVA676I	21606000 bits	0.922 V	0.979 V	530250	30300	Surface Mount	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	312	100 °C	-40 °C
AMD / Xilinx EK-U1-KCU105-G														FMC Pmod		Vivado		FPGA	XCKU040	Kintex UltraScale FPGA KCU105 PCIe Card	Board Cable Power Supply
