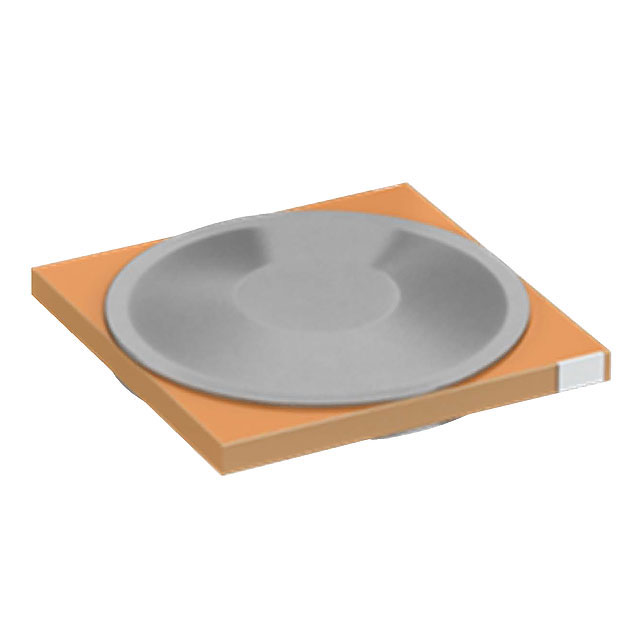

B54101H1020A001
ObsoleteEPCOS - TDK Electronics
VIBRATION PIEZO MOTOR 0-120 V
B54101H1020A001
ObsoleteEPCOS - TDK Electronics
VIBRATION PIEZO MOTOR 0-120 V
Description
General part information
B54101H1020A001
Vibration (Piezo) 0 ~ 120 V
Technical Specifications
Parameters and characteristics for this part
| Specification | B54101H1020A001 |
|---|---|
| Function | Vibration (Piezo), Vibration, Piezo (Haptic) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 1.024 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 1.024 in |
| Termination Style | Solder Pad |
| Voltage - Rated (Max) | 120 V |
| Voltage - Rated (Min) | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
