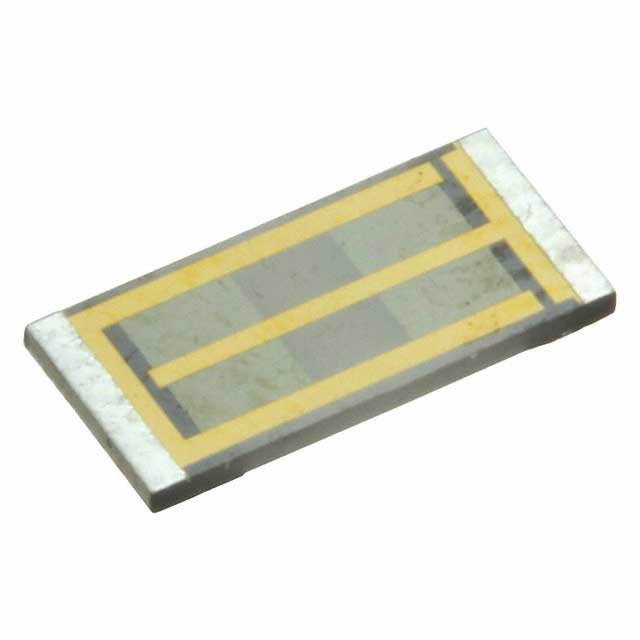

PCAN2512E30R1BST5
ActiveVishay Dale Thin Film
RES SMD 30.1 OHM 0.1% 6W 2512
PCAN2512E30R1BST5
ActiveVishay Dale Thin Film
RES SMD 30.1 OHM 0.1% 6W 2512
Description
General part information
PCAN2512E30R1BST5
30.1 Ohms ±0.1% 6W Chip Resistor 2512 (6432 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PCAN2512E30R1BST5 |
|---|---|
| Composition | Thin Film |
| Features | Flame Proof, Safety, Moisture Resistant |
| Height - Seated (Max) | 0.018 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 (6432 Metric) |
| Package Name | 2512 |
| Power (Watts) | 6 W |
| Resistance | 30.1 Ohm |
| Size / Dimension Length | 0.259 in |
| Size / Dimension Width | 0.124 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
