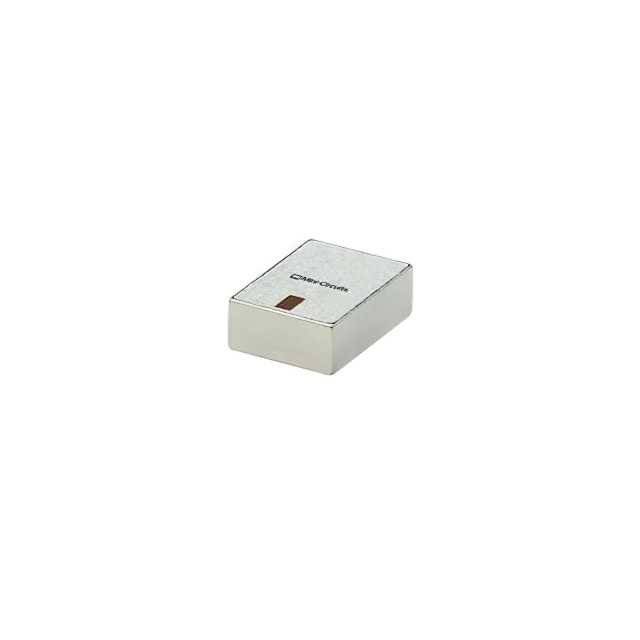

BFHK-8501+
ActiveMini-Circuits
LTCC BPF, 7500 - 8800 MHZ, 50
BFHK-8501+
ActiveMini-Circuits
LTCC BPF, 7500 - 8800 MHZ, 50
Description
General part information
BFHK-8501+
8.1GHz Center Band Pass Ceramic Filter 1.3 GHz 50Ohm 1812 (4532 Metric), 3 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | BFHK-8501+ |
|---|---|
| Bandwidth | 1.3 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 8.1 GHz |
| Height (Max) | 0.064 in |
| Impedance | 50 Ohm |
| Insertion Loss | 4.5 dB |
| Mounting Type | Surface Mount |
| Package Name | 1812 |
| Pad Count | 3 PC Pad |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
