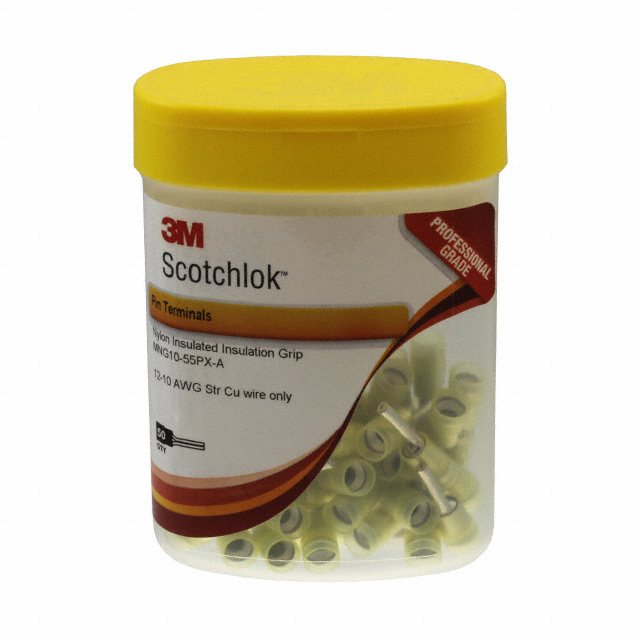

Specification	MNG10-55PX-A-BOTTLE

Color	Yellow
Contact Finish	Tin
Contact Material	Copper, ETP
Insulation	Insulated
Insulation Diameter	0.27 in
Length - Overall	1.06 in
Length - Pin	0.55 in
Material - Insulation	Polyamide, PA, Nylon
Pin Diameter	0.11 in
Pin Diameter Shape	Circular
Termination	Crimp
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

MNG10 Series

Part	Insulation Diameter	Length - Termination	Material - Insulation	Length - Ring Center to Termination	Stud/Tab Size	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Width - Outer Edges	Length - Overall	Contact Finish	Terminal Type	Mounting Type	Insulation	Color	Tab Width	Tab Thickness	Gender	Number of Wire Entries	Thickness	Stud/Tab Size (Type)	Stud/Tab Size
3M Electronic Specialty MNG10-8FBK	0.25 in	0.55 in	Nylon PA Polyamide	0.29 in	8 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Standard	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10-250DMK	0.25 in					Crimp	12 AWG	10 AWG	Copper ETP		1.05 in	Tin	Standard	Free Hanging (In-Line)	Non-Mating End Insulated	Yellow	0.25 in	0.032 in	Male
3M Electronic Specialty MNG10BCX-BOTTLE						Crimp	12 AWG	10 AWG					Butt Splice Individual Openings Inline		Fully Insulated	Yellow				2
3M Electronic Specialty MNG10-8FFBX-BOTTLE	0.25 in	0.55 in	Nylon PA Polyamide	0.29 in	8 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Flanged	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10-516R/SX-BOTTLE	0.25 in		Nylon PA Polyamide		0.3125 in	Crimp	12 AWG	10 AWG	Copper ETP	0.53 in	1.26 in	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow					0.04 in	Stud	16 Stud 5 Stud
3M Electronic Specialty MNG10-10FLK	0.25 in	0.55 in	Nylon PA Polyamide	0.28 in	10 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Snap Spring	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10BCMK						Crimp	12 AWG	10 AWG					Butt Splice Individual Openings Inline		Fully Insulated	Yellow				2
3M Electronic Specialty MNG10-14R/SK	0.25 in		Nylon PA Polyamide		0.25 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.53 in	1.26 in	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow					0.04 in
3M Electronic Specialty MNG10-10FFBK	0.25 in	0.55 in	Nylon PA Polyamide	0.29 in	10 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Flanged	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10-8RX-BOTTLE	0.25 in		Nylon PA Polyamide		8 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.38 in	1.03 in	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow					0.04 in
