MAL214099512E3
ActiveVishay Dale
680 16V 12,5X12,5X16MM 125 5000H
MAL214099512E3
ActiveVishay Dale
680 16V 12,5X12,5X16MM 125 5000H
Description
General part information
MAL214099512E3

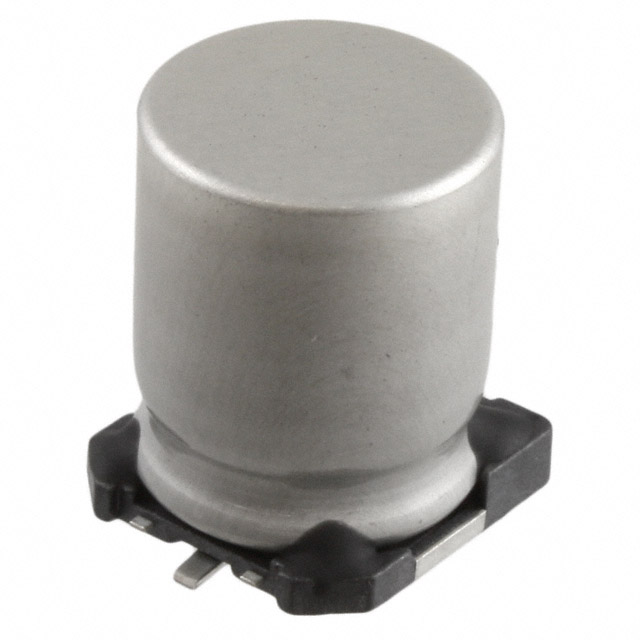

680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL214099512E3 |
|---|---|
| Applications | Automotive |
| Capacitance | 680 µF |
| Height - Seated (Max) | 0.63 in |
| Impedance | 90 mOhms |
| Lifetime | 3000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ratings | AEC-Q200 |
| Ripple Current | 900 mA |
| Size / Dimension Diameter | 0.492 in |
| Surface Mount Land Length | 0.492 in |
| Surface Mount Land Width | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
