BT-CAT6-P4-4870
ActivePasternack
INJDC PWR CAT6 48 VDC KIT
BT-CAT6-P4-4870
ActivePasternack
INJDC PWR CAT6 48 VDC KIT
Description
General part information
BT-CAT6-P4-4870

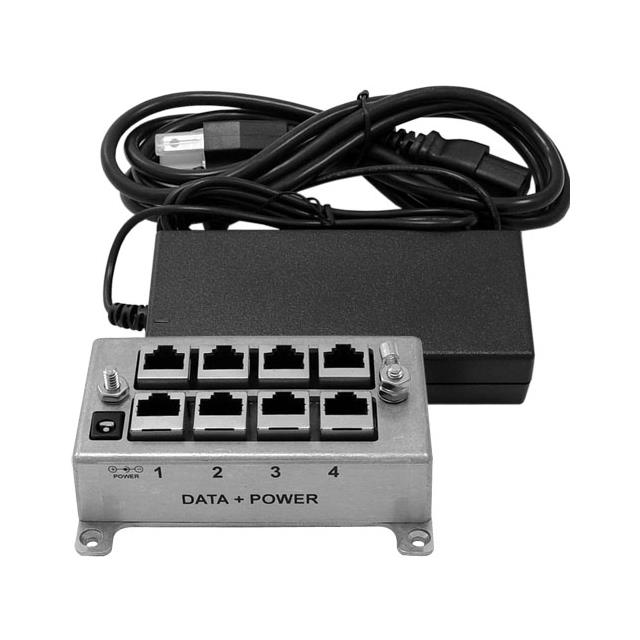

48V Power Over Ethernet (POE) 4 Port Midspan Injector 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | BT-CAT6-P4-4870 |
|---|---|
| Compliance | IEEE802.3af |
| Current - Output | 1.46 A |
| Input Connector | RJ45 (Data, Power), Receptacle (Power) |
| Input Connector Size | 2.5 mm |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Chassis Mount |
| Note | AC Power Cord Included |
| Number of Ports | 4 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 70 W |
| Size / Dimension Height | 1.2 in |
| Size / Dimension Length | 4.4 in |
| Size / Dimension Width | 2.4 in |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Output | 48 V |
