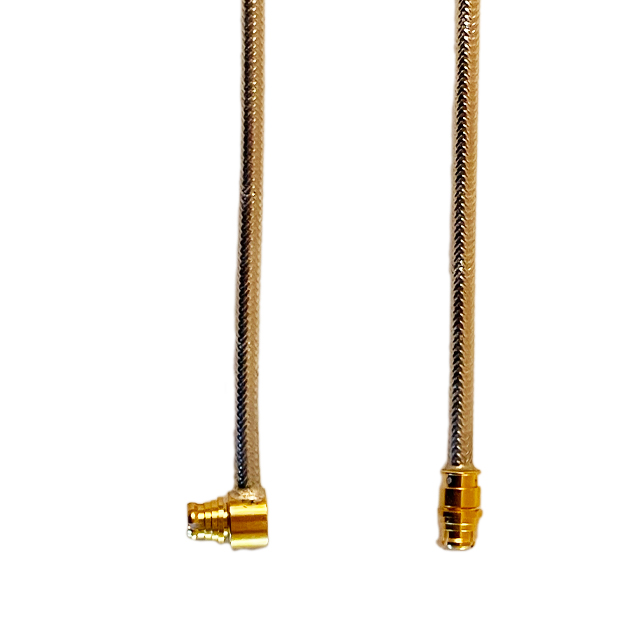

Specification	FMA28-PFPR-S16

1st Connector	SMP Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMP Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	Hand Formable
Cable Type Size	0.085
Color	Gray
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max	18 GHz
Length	16 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Impedance	50 Ohms
Style	SMP

FMA28 Series

Part	Frequency - Max	Connector Impedance	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type Size	Cable Type	Features	Length	Length (ft)	Operating Temperature (Max)	Operating Temperature (Min)	Overall Impedance	1st Connector	Color	2nd Contact Gender	Style	2nd Connector	1st Contact Gender
ConductRF FMA28-S1S1-S60	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	1524 mm	5 ft	125 °C	-55 °C	50 Ohms	SMA Plug	Gray	Male	SMA	SMA Plug	Male
ConductRF FMA28-S1M2-S12	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	12 in		125 °C	-55 °C	50 Ohms	SMA Plug	Gray	Male	MCX SMA	MCX Plug Right Angle	Male
ConductRF FMA28-S1S1-S36	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	36 in		125 °C	-55 °C	50 Ohms	SMA Plug	Gray	Male	SMA	SMA Plug	Male
ConductRF FMA28-M2M2-S12	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	12 in		125 °C	-55 °C	50 Ohms	MCX Plug Right Angle	Gray	Male	MCX	MCX Plug Right Angle	Male
ConductRF FMA28-S1S2-S24	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	24 in		125 °C	-55 °C	50 Ohms	SMA Plug	Gray	Male	SMA	Right Angle SMA Plug	Male
ConductRF FMA28-S1PR-S08	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	8 in		125 °C	-55 °C	50 Ohms	SMA Plug	Gray	Female	SMA SMP	Right Angle SMP Jack	Male
ConductRF FMA28-M1M1-S06	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	0.5 ft		125 °C	-55 °C	50 Ohms	MCX Plug	Gray	Male	MCX	MCX Plug	Male
ConductRF FMA28-M2M2-S24	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	24 in		125 °C	-55 °C	50 Ohms	MCX Plug Right Angle	Gray	Male	MCX	MCX Plug Right Angle	Male
ConductRF FMA28-S2M1-S06	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	0.5 ft		125 °C	-55 °C	50 Ohms	Right Angle SMA Plug	Gray	Male	MCX SMA	MCX Plug Right Angle	Male
ConductRF FMA28-S1PR-S12	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	0.085	Hand Formable	Shielded	12 in		125 °C	-55 °C	50 Ohms	SMA Plug	Gray	Female	SMA SMP	Right Angle SMP Jack	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

FMA28-PFPR-S16 | Datasheet
