LR6 G07/BF9
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 13.5V AA
LR6 G07/BF9
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 13.5V AA
Description
General part information
LR6 G07/BF9

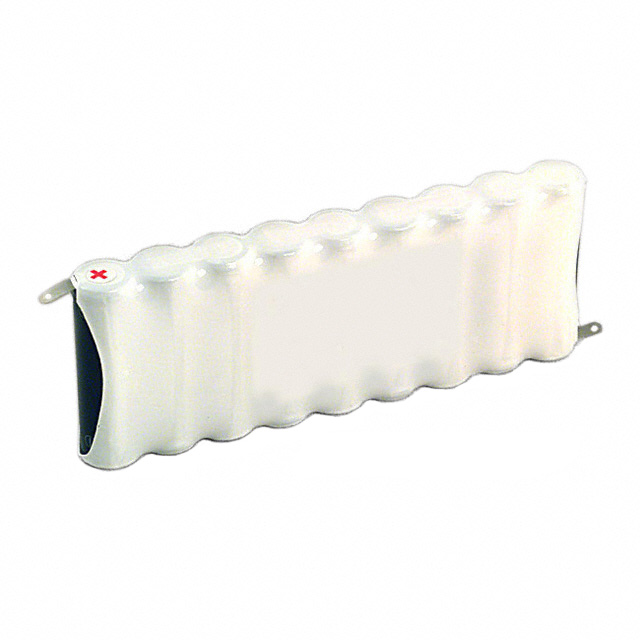

AA 13.5 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | LR6 G07/BF9 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Capacity (Charge) | 2.875 Ah |
| Number of Cells | 9 |
| Rechargeability | No |
| Size / Dimension Height | 1.99 in |
| Size / Dimension Length | 5.14 in |
| Size / Dimension Width | 0.57 in |
| Structure | Side to Side |
| Structure Cells | 9 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 13.5 VDC |
| Weight | 216 g |
