FXUB85.54.0150C
ActiveTaoglas Limited
RF ANTENNA, 600MHZ TO 8GHZ, 5G / 4G, 4.5DBI, 50 OHM, LINEAR
FXUB85.54.0150C
ActiveTaoglas Limited
RF ANTENNA, 600MHZ TO 8GHZ, 5G / 4G, 4.5DBI, 50 OHM, LINEAR
Description
General part information
FXUB85.54.0150C

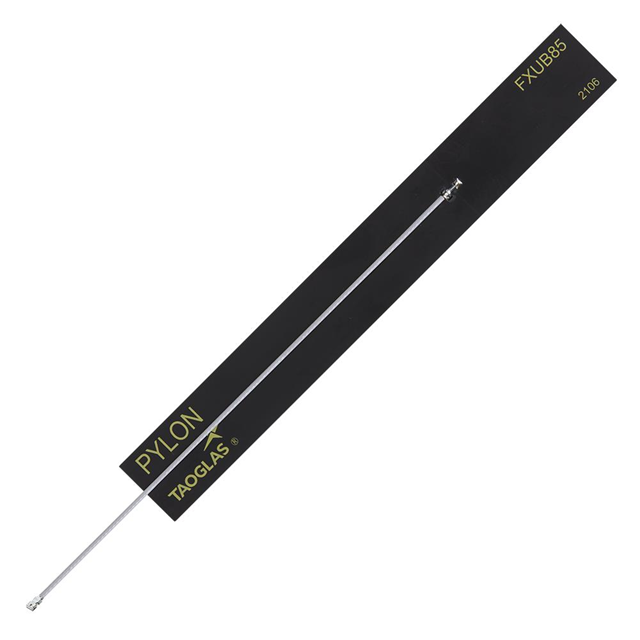

RF ANTENNA 3G, 4G, 5G, LTE, Wi-Fi Flat Patch IPEX MHF4L Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | FXUB85.54.0150C |
|---|---|
| Antenna Type | Flat Patch |
| Applications | 4G, LTE, Wi-Fi, 3G, 5G |
| Features | Cable, 150mm |
| Frequency (Center/Band) | 1.4725GHz, 788.5MHz, 6.525GHz, 5.5375GHz, 2.495GHz, 4.15GHz, 1.955GHz |
| Frequency (Center/Band) - 1 | 788.5 MHz |
| Frequency (Center/Band) - 2 | 1.4725 GHz |
| Frequency (Center/Band) - 3 | 1.955 GHz |
| Frequency (Center/Band) - 4 | 2.495 GHz |
| Frequency (Center/Band) - 5 | 4.15 GHz |
| Frequency (Center/Band) - 6 | 5.5375 GHz |
| Frequency (Center/Band) - 7 | 6.525 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 1.518 GHz |
| Frequency Range (Band 2) Minimum | 1.427 GHz |
| Frequency Range (Band 3) Maximum | 2.2 GHz |
| Frequency Range (Band 3) Minimum | 1.71 GHz |
| Frequency Range (Band 4) Maximum | 2.69 GHz |
| Frequency Range (Band 4) Minimum | 2.3 GHz |
| Frequency Range (Band 5) Maximum | 5 GHz |
| Frequency Range (Band 5) Minimum | 3.3 GHz |
| Frequency Range (Band 6) Maximum | 5.925 GHz |
| Frequency Range (Band 6) Minimum | 5.15 GHz |
| Frequency Range (Band 7) Maximum | 7.125 GHz |
| Frequency Range (Band 7) Minimum | 5.925 GHz |
| Gain | 2.4 dBi, 1.8 dBi, 1.9 dBi, 2.1 dBi, 5.6 dBi, 5.3 dBi, 4.5 dBi |
| Height (Max) | 0.012 in |
| Mounting Type | Adhesive |
| Number of Bands | 7 |
| Power - Max | 5 VA |
| Return Loss | -8dB, -7dB, -6dB, -15dB, -11dB |
| Return Loss | -6 dB, -8 dB, -15 dB, -7 dB, -11 dB |
| RF Family/Standard | WiFi, Cellular |
| Termination | IPEX MHF4L, I-PEX MHF4L |
