XUYFALNEP40120
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSORS XU, XUY, F
XUYFALNEP40120
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSORS XU, XUY, F
Description
General part information
XUYFALNEP40120

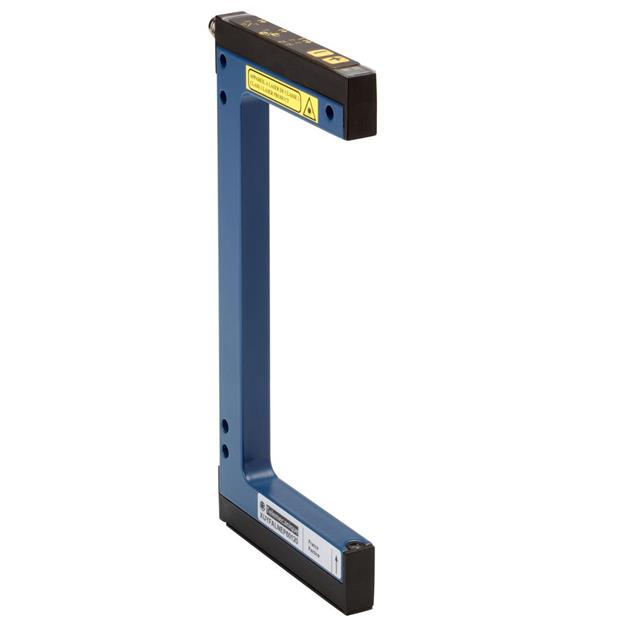

Through-Beam Optical Sensor 4.724" (120mm) NPN/PNP-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUYFALNEP40120 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | M8, Connector |
| Ingress Protection | IP65 |
| Light Source | Red LED, Yellow LED |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | NO, NPN, PNP-NC |
| Response Time | 20 ms |
| Sensing Distance | 4.724 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
