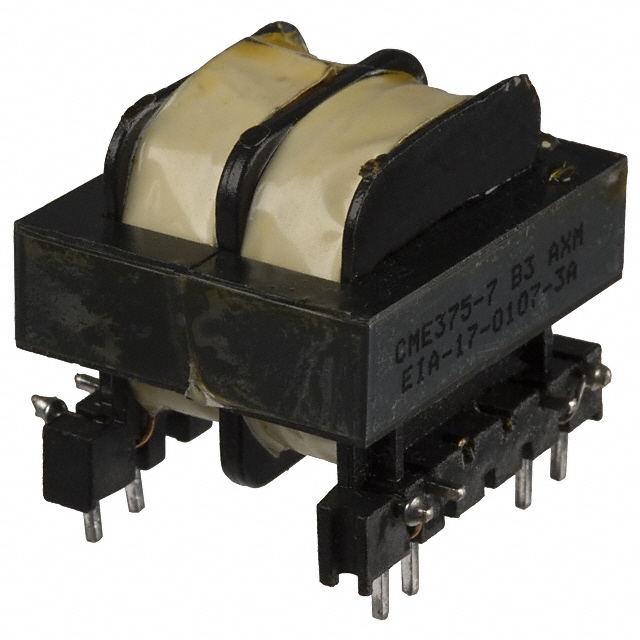

CME375-7

CME375-7

Active
Triad Magnetics

COMMON MODE INDUCTOR-70.3MH@1.38ARMS/CME375-7 ROHS COMPLIANT: YES

Find alt
CME375-7

CME375-7

Active
Triad Magnetics

COMMON MODE INDUCTOR-70.3MH@1.38ARMS/CME375-7 ROHS COMPLIANT: YES

Find alt

Description

General part information

CME375-7

70.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.38A DCR 785mOhm

Technical Specifications

Parameters and characteristics for this part

SpecificationCME375-7
Approval AgencyIEC, VDE, CSA, UL
Current Rating (Max)1.38 A
DC Resistance (DCR) (Max)785 mOhm
Filter TypePower Line
Height (Max)1.18 in
Inductance70.3 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature (Max)80 °C
Operating Temperature (Min)-40 °C
Package / Case4 PC Pin, Vertical
Package Leads4 Leads
Package NameVertical
Size / Dimension Length1.5 in
Size / Dimension Width1.26 in
Voltage Rating - AC250 V
