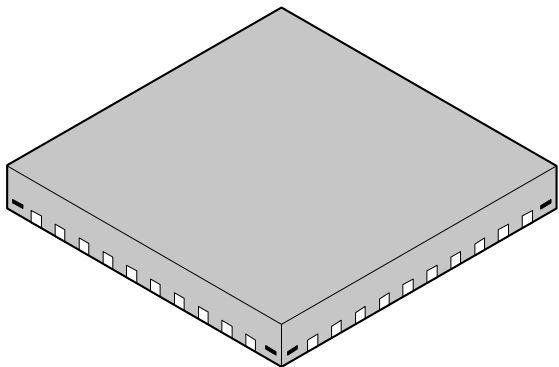

Specification	CY8C4147LQA-S243

A/D Channels	16 count, 20 count
A/D Resolution (bits)	10 bit, 12 bit
Connectivity	FIFO, SSP, LINbus, UART, I2C, SPI, IrDA, USART, SmartCard, Microwire
Core Processor	ARM® Cortex®-M0+
Core Size (Bit Width)	32 Bit
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of I/O	34
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal, External
Package / Case	40-UFQFN Exposed Pad
Package Length	6 mm
Package Name	40-QFN
Package Width	6 mm
Peripherals	LCD, DMA, Temp Sensor, Reset, CapSense, PWM, WDT, Brown-out Detect, POR
Program Memory Depth (128KB)	128 K
Program Memory Size	128KB
Program Memory Type	FLASH
Program Memory Width (128KB)	8
Qualification	AEC-Q100
RAM Size Depth	16 K
RAM Size Width	8 bit
Speed	24 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	1.71 V

CY8C4147 Series

...

Part	Qualification	Core Processor	D/A Channels	Converter Architecture	A/D Resolution (bits)	D/A Resolution (bits)	A/D Channels	Package / Case	Connectivity	Grade	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Type	Speed	Oscillator Type	Mounting Type	Package Width	Package Name	Package Length	RAM Size Width	RAM Size Depth	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of I/O	Peripherals	Core Size (Bit Width)	Converter Type	Core Configuration	Converter Options	A/D Resolution (Min)	A/D Resolution (Max)
INFINEON CY8C4147AZA-S445	AEC-Q100	ARM® Cortex®-M0+	2 count	SAR	10 bit 12 bit	7 bit	16 count	64-LQFP	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	85 °C	-40 °C	FLASH	48 MHz	External Internal	Surface Mount	10 mm	64-TQFP	10 mm	8 bit	16 K	5.5 V	1.71 V	54	Brown-out Detect CapSense LCD LVD POR PWM Reset WDT	32 Bit
INFINEON CY8C4147LDES563XQLA1	AEC-Q100	ARM® Cortex®-M0+		SAR	12 bit		16 count	48-VFQFN Exposed Pad	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	125 °C	-40 °C	FLASH	48 MHz	External Internal	Surface Mount Wettable Flank	7 mm	48-QFN	7 mm	8 bit	16 K	5.5 V	1.71 V	40	Brown-out Detect DMA LCD LVD POR PWM Reset WDT	32 Bit
INFINEON CY8C4147AZSS578XQLA1	AEC-Q100	ARM® Cortex®-M0+		SAR	12 bit		16 count	100-LQFP	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	105 °C	-40 °C	FLASH	48 MHz	External Internal	Surface Mount	14 mm	100-TQFP	14 mm	8 bit	16 K	5.5 V	1.71 V	84	Brown-out Detect CapSense DMA I2S LCD LVD POR PWM Reset WDT	32 Bit
INFINEON CY8C4147AZSS588XQLA1	AEC-Q100	ARM® Cortex®-M0+		SAR	12 bit		16 count	100-LQFP	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	105 °C	-40 °C	FLASH	48 MHz	External Internal	Surface Mount	14 mm	100-TQFP	14 mm	8 bit	16 K	5.5 V	1.71 V	84	Brown-out Detect CapSense Crypto - AES DMA I2S LCD LVD POR PWM Reset SHA Temp Sensor TRNG WDT	32 Bit
INFINEON CY8C4147LDAS593XQLA1	AEC-Q100	ARM® Cortex®-M0+		SAR	12 bit		16 count	48-VFQFN Exposed Pad	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	85 °C	-40 °C	FLASH	48 MHz	External Internal	Surface Mount Wettable Flank	7 mm	48-QFN	7 mm	8 bit	16 K	5.5 V	1.71 V	40	Brown-out Detect CapSense Crypto - AES DMA I2S LCD LVD POR PWM Reset SHA Temp Sensor TRNG WDT	32 Bit
INFINEON CY8C4147LQA-S273	AEC-Q100	ARM® Cortex®-M0+			10 bit 12 bit		16 count 20 count	40-UFQFN Exposed Pad	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	85 °C	-40 °C	FLASH	24 MHz	Internal	Surface Mount Wettable Flank	6 mm	40-QFN	6 mm	8 bit	16 K	5.5 V	1.71 V	34	Brown-out Detect CapSense LCD POR PWM Reset WDT	32 Bit
INFINEON CY8C4147AZQ-S475		ARM® Cortex®-M0+	2 count	SAR	10 bit 12 bit	7 bit	16 count	64-LQFP	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART		128 K	128KB	8	105 °C	-40 °C	FLASH	48 MHz	Internal	Surface Mount	10 mm	64-TQFP	10 mm	8 bit	16 K	5.5 V	1.71 V	54	Brown-out Detect CapSense LCD POR PWM Reset WDT	32 Bit	A/D D/A	Single-Core
INFINEON CY8C4147AZE-S475	AEC-Q100	ARM® Cortex®-M0+	2 count	SAR		7 bit		64-LQFP	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	125 °C	-40 °C	FLASH	48 MHz	Internal	Surface Mount	10 mm	64-TQFP	10 mm	8 bit	16 K	5.5 V	1.71 V	54	Brown-out Detect CapSense LCD POR PWM Reset WDT	32 Bit		Single-Core	A/D 10/12b SAR; D/A 2x7b	10 bit	12 bit
INFINEON CY8C4147AZSS565XQLA1	AEC-Q100	ARM® Cortex®-M0+		SAR	12 bit		16 count	64-LQFP	CANbus I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	105 °C	-40 °C	FLASH	48 MHz	External Internal	Surface Mount	10 mm	64-TQFP	10 mm	8 bit	16 K	5.5 V	1.71 V	54	Brown-out Detect DMA LCD LVD POR PWM Reset WDT	32 Bit
INFINEON CY8C4147LDSS543XQLA1	AEC-Q100	ARM® Cortex®-M0+		SAR	12 bit		16 count	48-VFQFN Exposed Pad	I2C IrDA LINbus Microwire SmartCard SPI SSP UART USART	Automotive	128 K	128KB	8	105 °C	-40 °C	FLASH	48 MHz	External Internal	Surface Mount Wettable Flank	7 mm	48-QFN	7 mm	8 bit	16 K	5.5 V	1.71 V	40	Brown-out Detect DMA LCD LVD POR PWM Reset WDT	32 Bit
