664-025-364-035

Active

EDAC Inc.

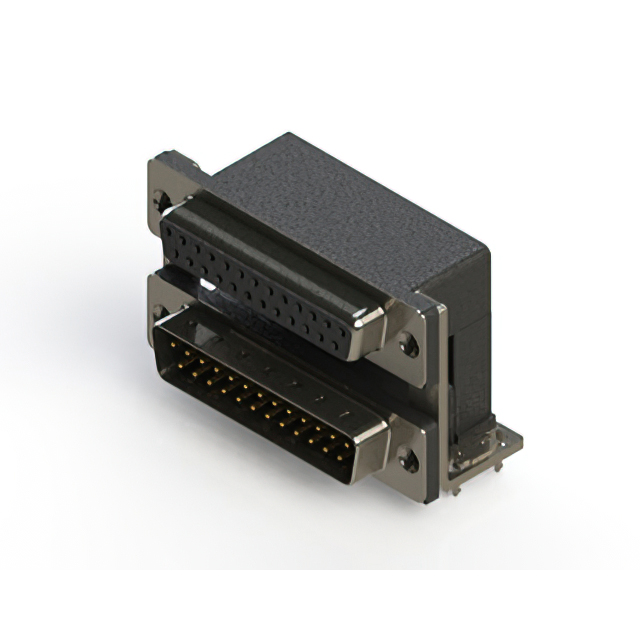

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

664-025-364-035

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	664-025-364-035

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins, Receptacle, Female Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

664-025 Series

Part	Number of Rows	Flange Feature	Contact Finish	Material Flammability Rating	Mounting Type	Contact Type	Connector Style	Backset Spacing	Backset Spacing	Shell Material, Finish	Dielectric Material	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Features	Color	Contact Material	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 664-025-664-059	2	Female Screwlock (4-40) Mating Side	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25	0.76 Ám	30 Áin	Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Grounding Indents Mounting Brackets Shielded	Black	Brass Phosphor Bronze	3 A
EDAC Inc. 664-025-664-002	2	Housing/Shell (4-40)	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25	0.76 Ám	30 Áin	Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Grounding Indents Shielded	Black	Brass Phosphor Bronze	3 A
EDAC Inc. 664-025-664-055	2	Housing/Shell (4-40)	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25	0.76 Ám	30 Áin	Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Grounding Indents Mounting Brackets Shielded	Black	Brass Phosphor Bronze	3 A
EDAC Inc. 664-025-364-046	2	Female Screwlock (4-40) Mating Side	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25	0.38 µm	15 µin	Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Brass Phosphor Bronze	3 A
EDAC Inc. 664-025-264-036	2	Female Screwlock (4-40) Mating Side	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25			Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Brass Phosphor Bronze	3 A	Flash
EDAC Inc. 664-025-264-009	2	Female Screwlock (4-40) Mating Side	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25			Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Grounding Indents Shielded	Black	Brass Phosphor Bronze	3 A	Flash
EDAC Inc. 664-025-664-04C	2	Housing/Shell (M3)	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25	0.76 Ám	30 Áin	Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Brass Phosphor Bronze	3 A
EDAC Inc. 664-025-264-007	2	Housing/Shell (Unthreaded)	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25			Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Grounding Indents Shielded	Black	Brass Phosphor Bronze	3 A	Flash
EDAC Inc. 664-025-664-006	2	Female Screwlock (4-40) Mating Side	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25	0.76 Ám	30 Áin	Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Grounding Indents Shielded	Black	Brass Phosphor Bronze	3 A
EDAC Inc. 664-025-364-035	2	Housing/Shell (4-40)	Gold	UL94 V-0	Through Hole Right Angle	Signal	D-Sub - Stacked	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	Solder	25	0.38 µm	15 µin	Plug Male Pins Receptacle Female Socket	85 °C	-55 °C	3 (DB B)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Brass Phosphor Bronze	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 10.15
Newark	Each	100	$ 10.35
		250	$ 9.76

Description

General part information

664-025 Series

25, 25 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector
