22UL3173STRWHI250
ActiveRemington Industries
#22 UL3173 600V WIRE WHI 250'
22UL3173STRWHI250
ActiveRemington Industries
#22 UL3173 600V WIRE WHI 250'
Description
General part information
22UL3173STRWHI250

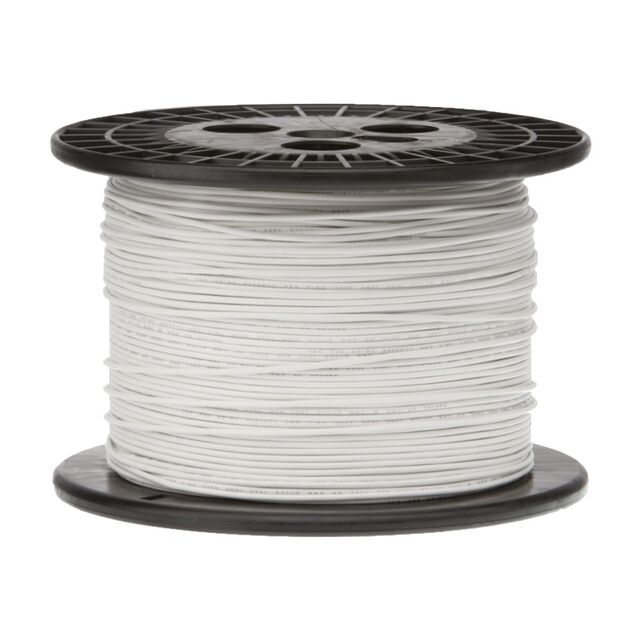

22 AWG Hook-Up Wire 7/30 White 600V 250.0' (76.2m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 22UL3173STRWHI250 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 30 |
| Features | Corrosion Resistant, Oil Resistant, Abrasion Resistant, Chemical Resistant, Solvent Resistant |
| Jacket (Insulation) Diameter | 0.09 in |
| Jacket (Insulation) Material | Polyethylene (XLPE) |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | White |
| Length | 250 ft |
| Operating Temperature | 125 °C |
| Ratings | 3173, Style, UL |
| Voltage | 600 V |
| Wire Gauge | 22 AWG |
