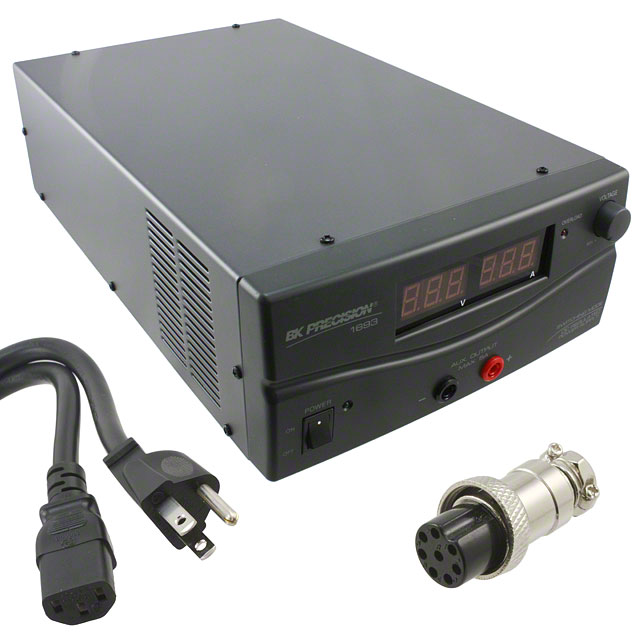

1693
ActiveB&K PRECISION
PWR SUPP 1-15V 60A W/REMOTE SENS
1693
ActiveB&K PRECISION
PWR SUPP 1-15V 60A W/REMOTE SENS
Description
General part information
1693
1 ~ 15VDC Output Bench (AC to DC) Power Supply LED 60A Output 900W Features Adjustable or Fixed Selection Switch
Technical Specifications
Parameters and characteristics for this part
| Specification | 1693 |
|---|---|
| Accuracy - Device Types | Ammeter, Voltmeter |
| Accuracy (Counts) | 1 count |
| Accuracy (Percent) | 1 % |
| Current - Output | 60 A |
| Display Type | LED |
| Features | Fixed Selection Switch, Adjustable, Adjustable or Fixed Selection Switch |
| Number of Characters | 3 characters |
| Number of Characters (Secondary) | 2 characters |
| Number of Outputs | 1 |
| Power (Watts) | 900 W |
| Ripple Voltage (Peak-to-Peak) | 4 mV |
| Size / Dimension Height | 4.33 in |
| Size / Dimension Length | 14.17 in |
| Size / Dimension Width | 8.66 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 15 V |
| Voltage - Output (Min) | 1 V |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Voltage Regulation - Line (Absolute) | 3 mV |
| Voltage Regulation - Line (Percentage) | 0.05 % |
| Voltage Regulation - Load (Percentage) | 0.1 % |
| Voltage Regulation - Load (Voltage Offset) | 5 mV |
| Weight | 13 lbs |
