CBW5R5224CF-ZJ
ActiveCDA (Zhifengwei Technology)
CAP 0.22F -20% +80% 5.5V T/C
CBW5R5224CF-ZJ
ActiveCDA (Zhifengwei Technology)
CAP 0.22F -20% +80% 5.5V T/C
Description
General part information
CBW5R5224CF-ZJ

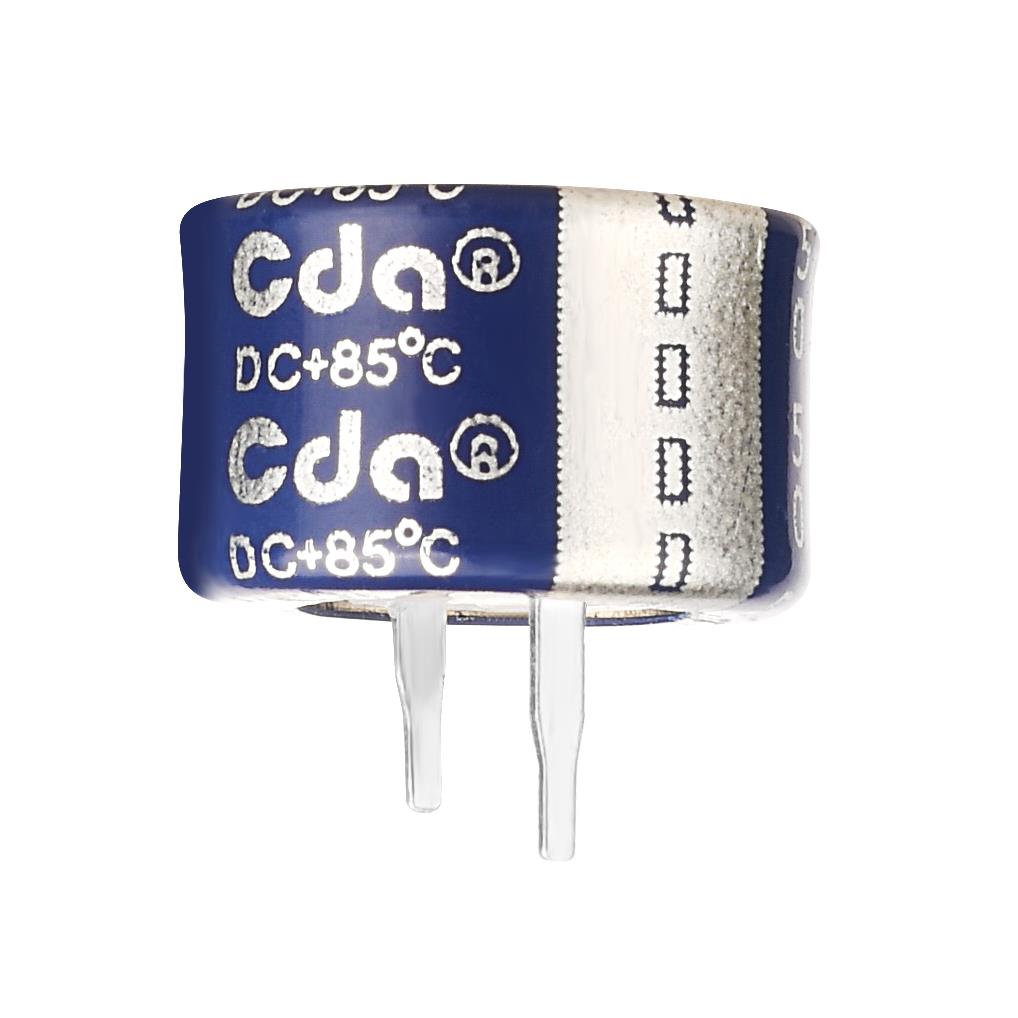

200 mF (EDLC) Supercapacitor 5.5 V Radial, Can 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CBW5R5224CF-ZJ |
|---|---|
| Capacitance | 220 mF, 200 mF |
| ESR (Equivalent Series Resistance) | 75 Ohm |
| Height - Seated (Max) | 0.413 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.531 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5.5 V |
