AGW-3
ActiveEaton - Electronics Division
FUSE GLASS 3A 32VAC 7AG
AGW-3
ActiveEaton - Electronics Division
FUSE GLASS 3A 32VAC 7AG
Description
General part information
AGW-3

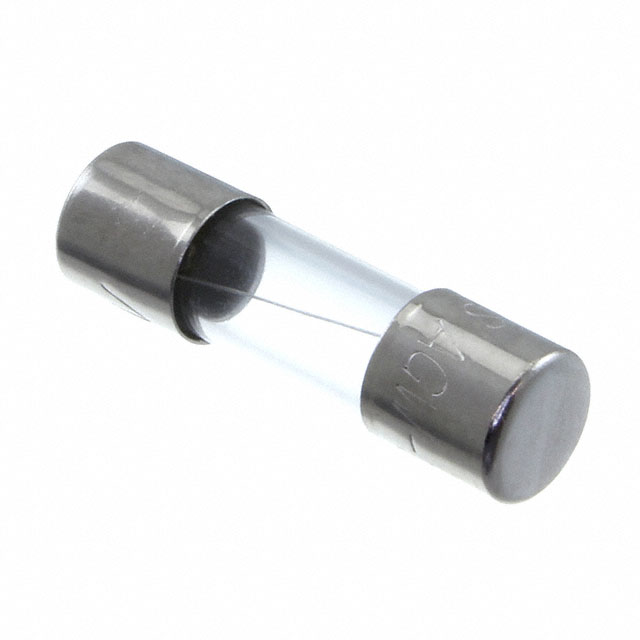

3 A 32 V AC DC Fuse Cartridge, Glass Requires Holder 7AG, 1/4" x 7/8"
Technical Specifications
Parameters and characteristics for this part
| Specification | AGW-3 |
|---|---|
| Breaking Capacity | 1 kA |
| Current Rating | 3 A |
| DC Cold Resistance | 0.036 Ohms |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Requires Holder |
| Package / Case | 7AG, 1/4" x 7/8" |
| Package Diameter | 0.25 in |
| Package Length | 0.875 in |
| Package Name | 7AG |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 0.875 in |
| Voltage Rating - AC | 32 VAC |
