PCRJ45AUE
ActiveSWITCHCRAFT/CONXALL
MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 (TOP ENTRY) TH
PCRJ45AUE
ActiveSWITCHCRAFT/CONXALL
MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 (TOP ENTRY) TH
Description
General part information
PCRJ45AUE

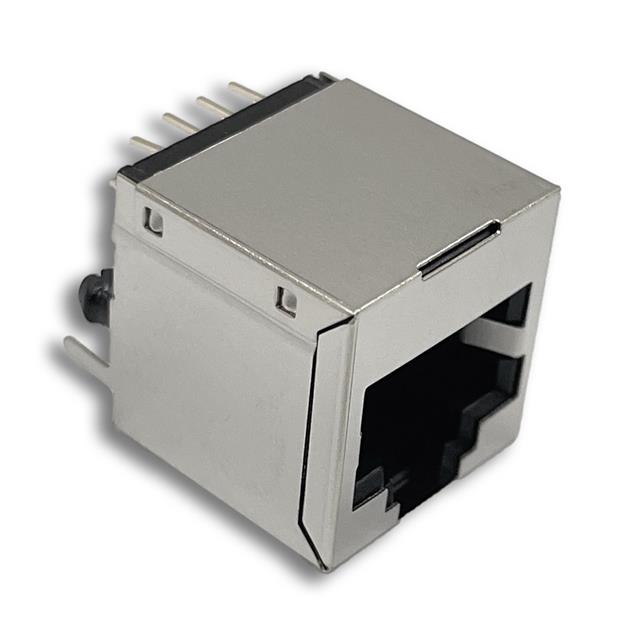

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | PCRJ45AUE |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Vertical |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
