N-1250SCRLF4
UnknownPanasonic Energy
BATTERY PACK NICD 4.8V 4/5SC
N-1250SCRLF4
UnknownPanasonic Energy
BATTERY PACK NICD 4.8V 4/5SC
Description
General part information
N-1250SCRLF4

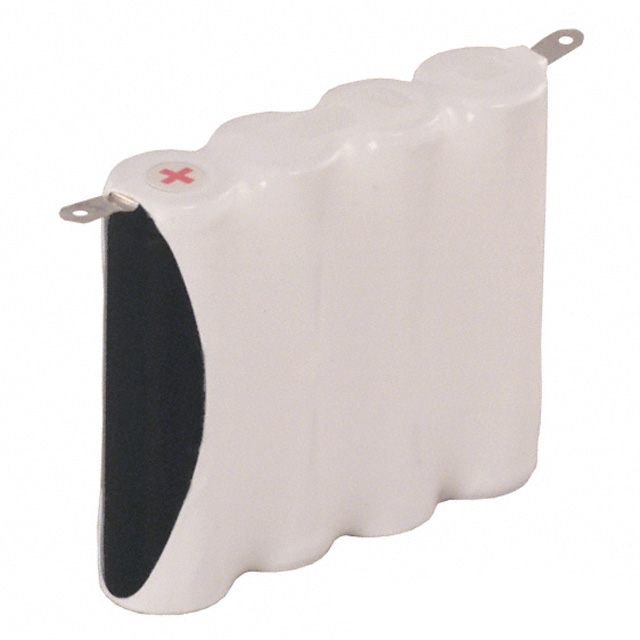

4/5SC 4.8 V Nickel Cadmium Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | N-1250SCRLF4 |
|---|---|
| Battery Cell Size | 4/5SC |
| Battery Chemistry | Nickel Cadmium |
| Capacity (Charge) | 1.2 Ah |
| Number of Cells | 4 |
| Rechargeability | Yes |
| Size / Dimension Height | 1.31 in |
| Size / Dimension Length | 3.51 in |
| Size / Dimension Width | 0.88 in |
| Structure | Side to Side |
| Structure Cells | 4 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 4.8 V |
| Weight | 172.37 g |
