1-1986484-2
ActiveTE Connectivity AMP Connectors

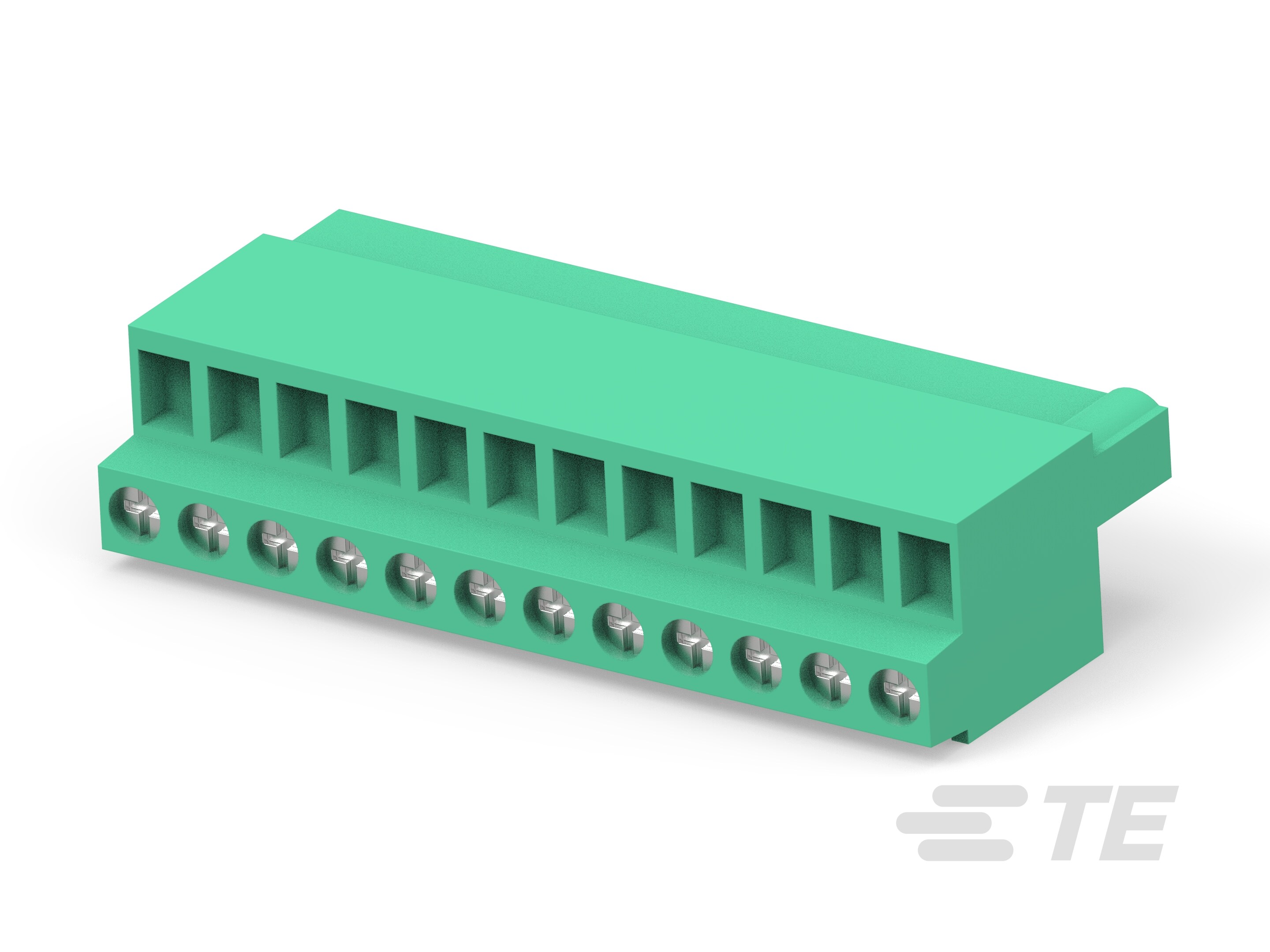

PLUGGABLE TERMINAL BLOCK, 5.08 MM, 12 POSITIONS, 24 AWG, 14 AWG, 2 MM², SCREW
1-1986484-2
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCK, 5.08 MM, 12 POSITIONS, 24 AWG, 14 AWG, 2 MM², SCREW
Description
General part information
1-1986484-2
12 Position PCB Terminal Block, Plug, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 180° Wire Entry Angle, 24 – 14 AWG, .2 – 2 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1986484-2 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 16 A |
| Features | Retention Latches (Non-Wire Side) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 12 |
| Termination Style | Screw - Pressure Clip |
| Type | Female Sockets, Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
