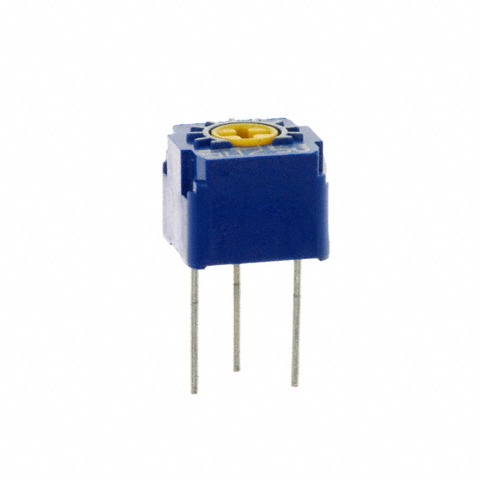

CT6P203
ObsoleteVishay Dale
TRIMMER 20K OHM 0.5W PC PIN TOP
CT6P203
ObsoleteVishay Dale
TRIMMER 20K OHM 0.5W PC PIN TOP
Description
General part information
CT6P203
20 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | CT6P203 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 20 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 0.276 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
