249159003122106
ActiveKYOCERA AVX
FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES
249159003122106
ActiveKYOCERA AVX
FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES
Description
General part information
249159003122106

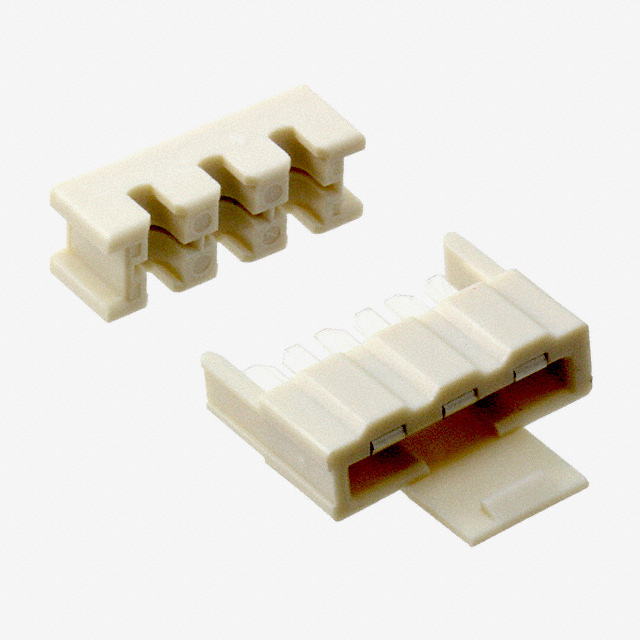

SSL Connector 3 Position Socket Board to Cable/Wire 0.118" (3.00mm) IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 249159003122106 |
|---|---|
| Connector Type | Socket |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Per Contact) | 5 A |
| Fastening Type | Latch Lock |
| Housing Color | White |
| Housing Material | Nylon 4/6, Glass Filled, PA46, Polyamide |
| Mating Cycles | 10 cycles |
| Mounting Type | Free Hanging (In-Line) - Feed Through |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
| Style | Cable/Wire, Board |
| Termination | IDC |
| Voltage Rating | 125 V |
| Wire Gauge | 22 AWG |
