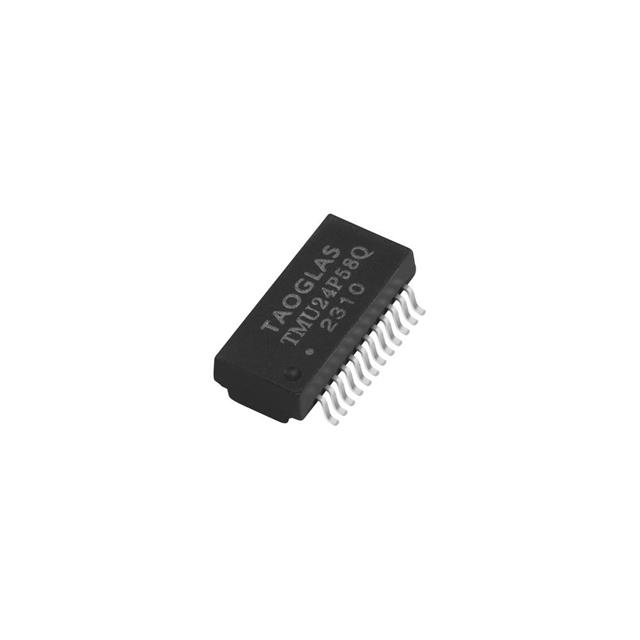

TMU24P58Q
180µH LAN 5G Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TMU24P58Q |
|---|---|
| Height - Seated (Max) | 0.157 in |
| Inductance | 180 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.594 in |
| Size / Dimension Width | 0.28 in |
| Transformer Type | Power over Ethernet (PoE), LAN 5G Base-T |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
