ET2835-035
ActiveTriad Magnetics
COMMON MODE CHOKE 92.0MH@0.6ARMS/ET2835-035 ROHS COMPLIANT: YES
ET2835-035
ActiveTriad Magnetics
COMMON MODE CHOKE 92.0MH@0.6ARMS/ET2835-035 ROHS COMPLIANT: YES
Description
General part information
ET2835-035

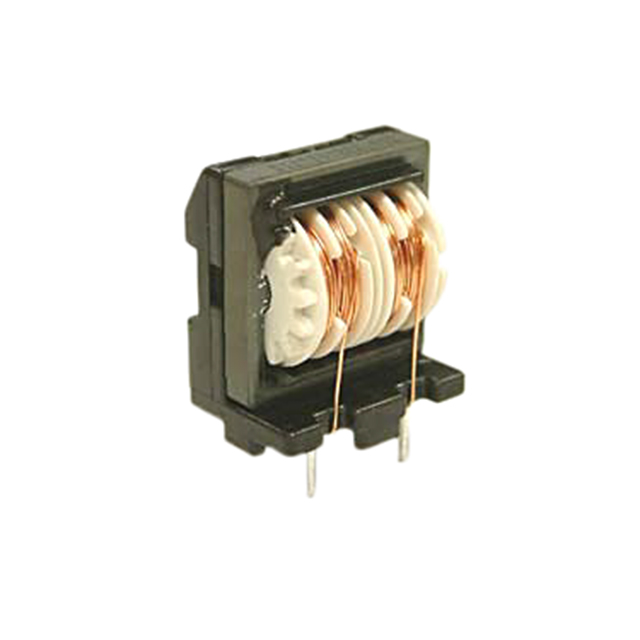

92 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 2Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | ET2835-035 |
|---|---|
| Approval Agency | CSA, UL, IEC |
| Current Rating (Max) | 600 mA |
| DC Resistance (DCR) (Max) | 2 Ohm |
| Filter Type | Power Line |
| Height (Max) | 1.457 in |
| Inductance | 92 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.24 in |
| Size / Dimension Width | 0.925 in |
| Voltage Rating - AC | 250 V |
