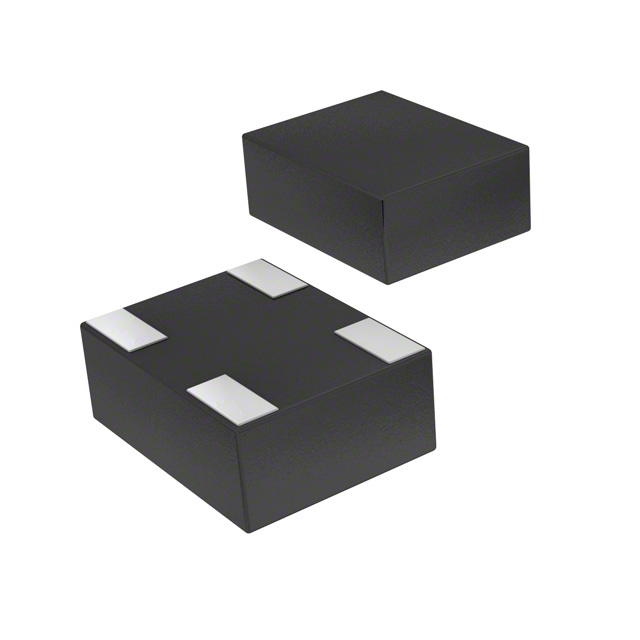

CP0402Q5425ENTR
ActiveKYOCERA AVX
RF DIR COUPLER 2.4-2.5GHZ 0302
CP0402Q5425ENTR
ActiveKYOCERA AVX
RF DIR COUPLER 2.4-2.5GHZ 0302
Description
General part information
CP0402Q5425ENTR
RF Directional Coupler General Purpose 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz 20dB 0302 (0806 Metric), 4 Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CP0402Q5425ENTR |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency Range 1 (Max) | 2.5 GHz |
| Frequency Range 1 (Min) | 2.4 GHz |
| Frequency Range 2 (Max) | 5.95 GHz |
| Frequency Range 2 (Min) | 4.9 GHz |
| Insertion Loss | 0.4 dB |
| Package Leads | 4 Leads |
| Package Name | 0302 (0806 Metric) |
| Return Loss | 30 dB |
