CC-9C-V212-Z6
ObsoleteDigi International
IC MOD ARM926EJ-S 155MHZ 16MB
CC-9C-V212-Z6
ObsoleteDigi International
IC MOD ARM926EJ-S 155MHZ 16MB
Description
General part information
CC-9C-V212-Z6

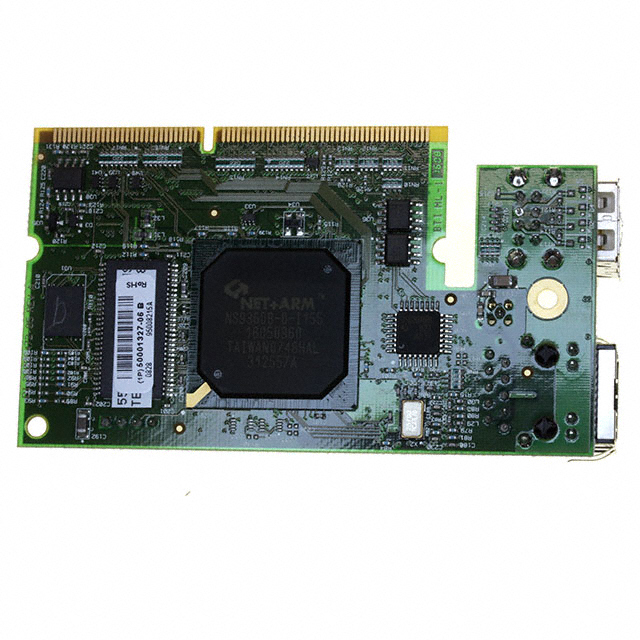

ConnectCore® Embedded Module ARM926EJ-S, NS9360 155MHz 16MB 4MB
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-9C-V212-Z6 |
|---|---|
| Connector Type | SO-DIMM-144 |
| Core Processor | ARM926EJ-S, NS9360 |
| Flash Size | 4 MB |
| Module/Board Type | MPU Core |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RAM Size | 16 MB |
| Size / Dimension Length | 3.59 in |
| Size / Dimension Width | 2.06 in |
| Speed | 155 MHz |
