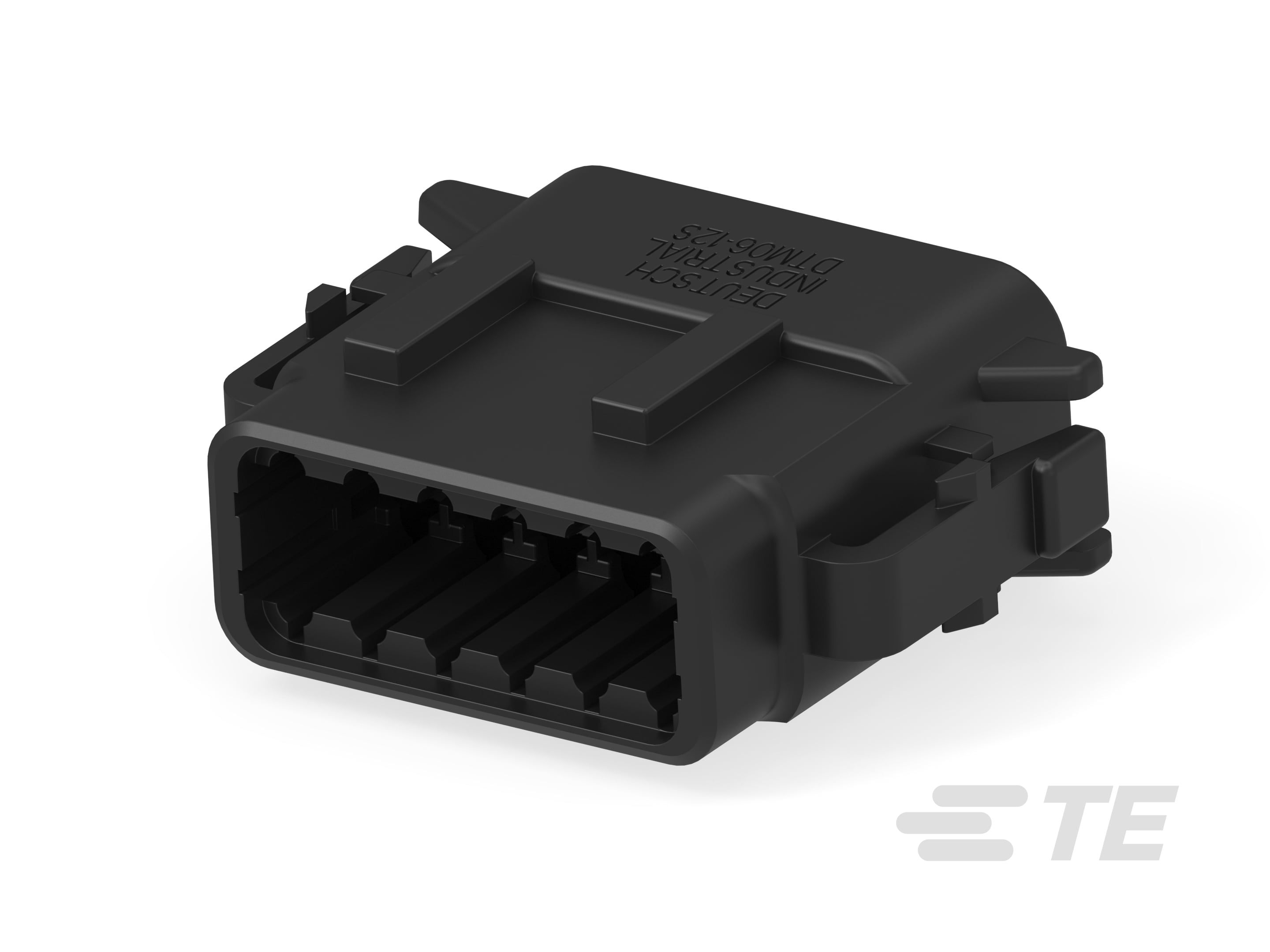

DTM06-12SA-EE04
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 12P DTM PLUG ASM KEY A, HIGH TEMP BLK
DTM06-12SA-EE04
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 12P DTM PLUG ASM KEY A, HIGH TEMP BLK
Description
General part information
DEUTSCH DT Series
12 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3.81 mm [.15 in] Centerline, Sealable, Black, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM06-12SA-EE04 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | IP6K9K, IP68 |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.165 in |
| Row Spacing | 0.28 in |
