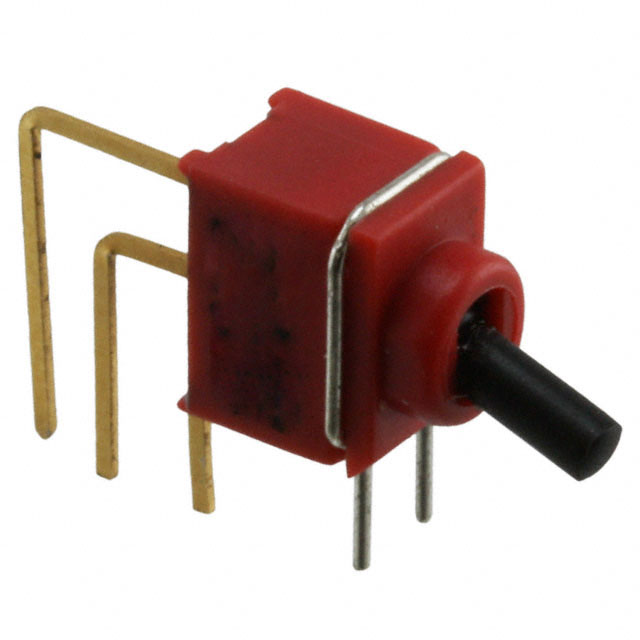

200USP1T1A1M7RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	200USP1T1A1M7RE

Actuator Length [x]	3.8 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Actuator Length [x]	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Circuit	Illumination	Mounting Type	Ingress Protection	Features	Bushing Thread	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Switch Function
E-Switch 200USP1T1A1M7RE	3.8 mm	40000 Cycles	-30 ░C	85 °C	0.4 VA	Standard Round	SPDT	Non-Illuminated	Right Angle, Through Hole, Vertical	IP67 - Dust Tight, Waterproof	Epoxy Sealed Terminals	Unthreaded	20 V	20 V	PC Pin	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical

Technical documentation and resources

No documents available
