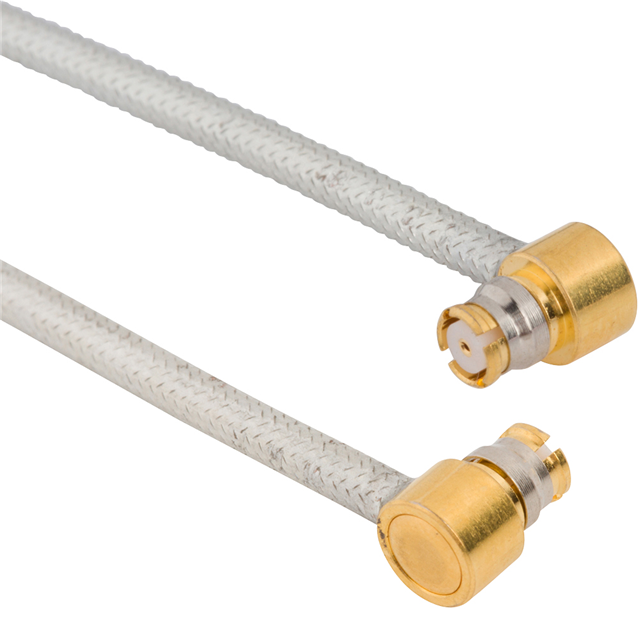

Specification	095-725-117M030

1st Connector	Right Angle, SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMP Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Diameter	0.085 "
Cable Type	Semi, Rigid Cable, Semi-Rigid Cable
Cable Type Size	0.085 ", 0.085
Color	Gray
Frequency - Max	20 Gbps
Length	11.811 in
Overall Impedance	50 Ohms
Style	SMP

095-725 Series

...

Part	Color	Frequency - Max	2nd Connector	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	Cable Type Size	Cable Type	Overall Impedance	Style	1st Contact Gender	Length	1st Connector	Length (ft)
McGill Microwave Systems 095-725-121-008	Gray	20 Gbps	Right Angle SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.047	Hand Formable	50 Ohms	SMP	Male	8 in	Right Angle SMP Plug
McGill Microwave Systems 095-725-119-011	Gray	20 Gbps	SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.047	Hand Formable	50 Ohms	SMP	Male	11 in	SMP Plug
McGill Microwave Systems 095-725-119M075	Gray	20 Gbps	SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.047	Hand Formable	50 Ohms	SMP	Male	29.53 in	SMP Plug
McGill Microwave Systems 095-725-108-050	Gray	20 Gbps	SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	0.085	Hand Formable	50 Ohms	SMP	Female	5 in	SMP Plug
McGill Microwave Systems 095-725-120-018	Gray	20 Gbps	Right Angle SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.047	Hand Formable	50 Ohms	SMP	Male	18 in	SMP Plug
McGill Microwave Systems 095-725-118-009	Gray	20 Gbps	Right Angle SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.086	Hand Formable	50 Ohms	SMP	Male	228.6 mm	SMP Plug
McGill Microwave Systems 095-725-120M010	Gray	20 Gbps	Right Angle SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.047	Hand Formable	50 Ohms	SMP	Male	3.937 in	SMP Plug
McGill Microwave Systems 095-725-118M005	Gray	20 Gbps	Right Angle SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.086	Hand Formable	50 Ohms	SMP	Male	1.969 in	SMP Plug
McGill Microwave Systems 095-725-119M200	Gray	20 Gbps	SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.047	Hand Formable	50 Ohms	SMP	Male		SMP Plug	6.6 ft
McGill Microwave Systems 095-725-120M015	Gray	20 Gbps	Right Angle SMP Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	0.047	Hand Formable	50 Ohms	SMP	Male	5.906 in	SMP Plug
