CFSA69383P-B30NF
ActiveTE Connectivity AMP Connectors
OMNI,DBAND,30CM,NF OD180MM,BULK PACK,16P
CFSA69383P-B30NF
ActiveTE Connectivity AMP Connectors
OMNI,DBAND,30CM,NF OD180MM,BULK PACK,16P
Description
General part information
CFSA69383P-B30NF

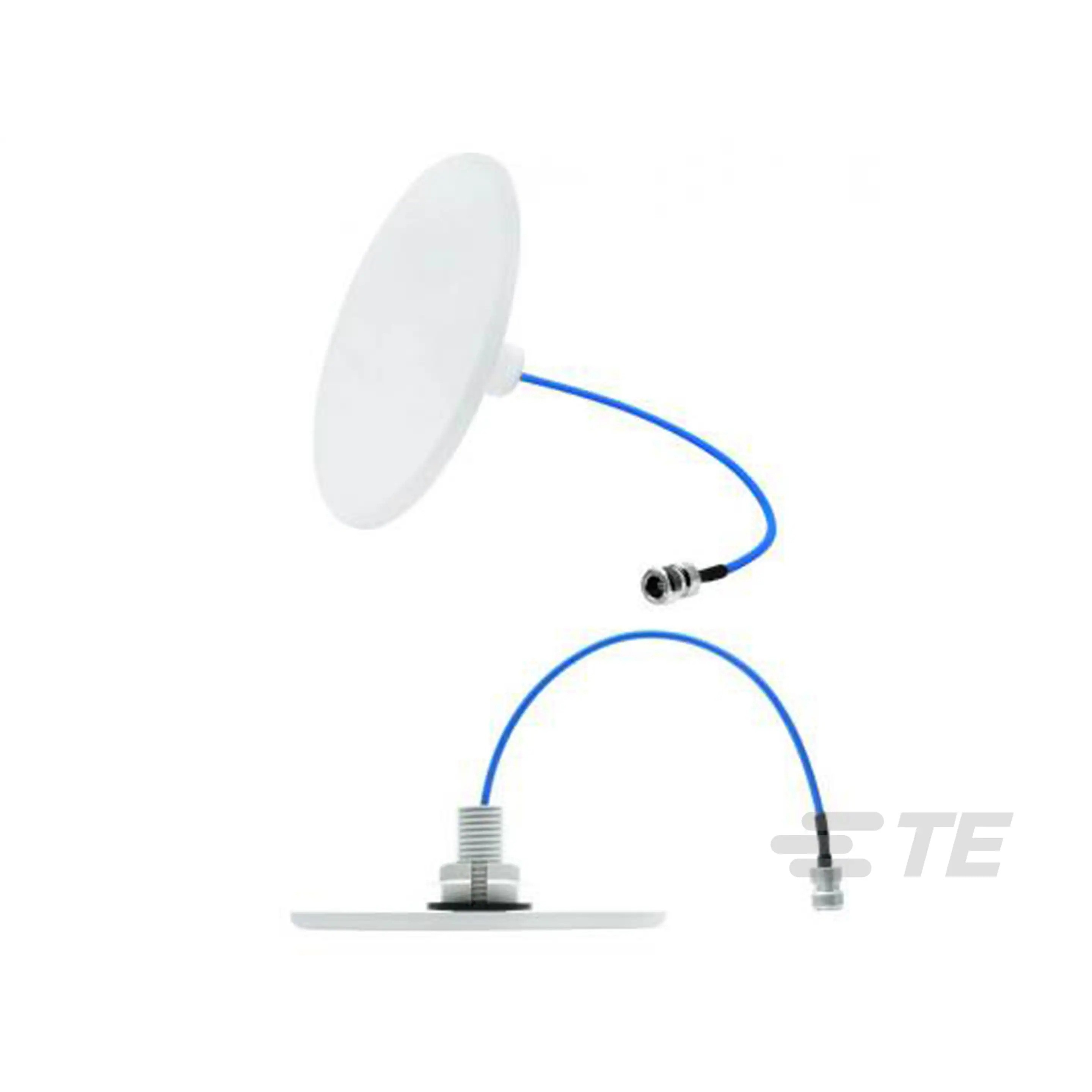

Dome/Puck Antenna, Wide Band, 5G / Cellular / DAS, Remote Mount, Wall/Ceiling Mount, N-type, Omnidirectional, Single Port, CFSA Series
Technical Specifications
Parameters and characteristics for this part
| Specification | CFSA69383P-B30NF |
|---|---|
| Antenna Type | Flat Panel |
| Applications | LTE, WiMax™, UMTS, DCS, AWS, GSM |
| Features | 304.8mm, Cable |
| Frequency (Center/Band) | 1.785GHz, 2.4GHz, 1.45GHz, 885MHz, 3.55GHz, 2.6GHz, 1.92GHz, 859MHz, 2.045GHz, 3.9GHz, 752MHz |
| Frequency (Center/Band) - 1 | 752 MHz |
| Frequency (Center/Band) - 10 | 3.55 GHz |
| Frequency (Center/Band) - 11 | 3.9 GHz |
| Frequency (Center/Band) - 2 | 859 MHz |
| Frequency (Center/Band) - 3 | 885 MHz |
| Frequency (Center/Band) - 4 | 1.45 GHz |
| Frequency (Center/Band) - 5 | 1.785 GHz |
| Frequency (Center/Band) - 6 | 1.92 GHz |
| Frequency (Center/Band) - 7 | 2.045 GHz |
| Frequency (Center/Band) - 8 | 2.4 GHz |
| Frequency (Center/Band) - 9 | 2.6 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 806 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 10) Maximum | 3.8 GHz |
| Frequency Range (Band 10) Minimum | 3.3 GHz |
| Frequency Range (Band 11) Maximum | 4 GHz |
| Frequency Range (Band 11) Minimum | 3.8 GHz |
| Frequency Range (Band 2) Maximum | 894 MHz |
| Frequency Range (Band 2) Minimum | 824 MHz |
| Frequency Range (Band 3) Maximum | 890 MHz |
| Frequency Range (Band 3) Minimum | 880 MHz |
| Frequency Range (Band 4) Maximum | 1.55 GHz |
| Frequency Range (Band 4) Minimum | 1.35 GHz |
| Frequency Range (Band 5) Maximum | 1.88 GHz |
| Frequency Range (Band 5) Minimum | 1.69 GHz |
| Frequency Range (Band 6) Maximum | 1.99 GHz |
| Frequency Range (Band 6) Minimum | 1.85 GHz |
| Frequency Range (Band 7) Maximum | 2.18 GHz |
| Frequency Range (Band 7) Minimum | 1.91 GHz |
| Frequency Range (Band 8) Maximum | 2.5 GHz |
| Frequency Range (Band 8) Minimum | 2.3 GHz |
| Frequency Range (Band 9) Maximum | 2.7 GHz |
| Frequency Range (Band 9) Minimum | 2.5 GHz |
| Gain | 4.3 dBi, 3 dBi, 5.4 dBi, 3.2 dBi, 2.4 dBi, 4 dBi, 2.6 dBi, 4.4 dBi, 3.4 dBi, 4.2 dBi |
| Height (Max) | 0.3 in |
| Mounting Type | Ceiling Mount |
| Number of Bands | 11 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 1.5, 2, 1.8 |
